PSC1065H-QJ
SIC DIODES AND FETSManufacturer: Nexperia USA Inc.
Categories: Single Diodes
Quality Control: Learn More

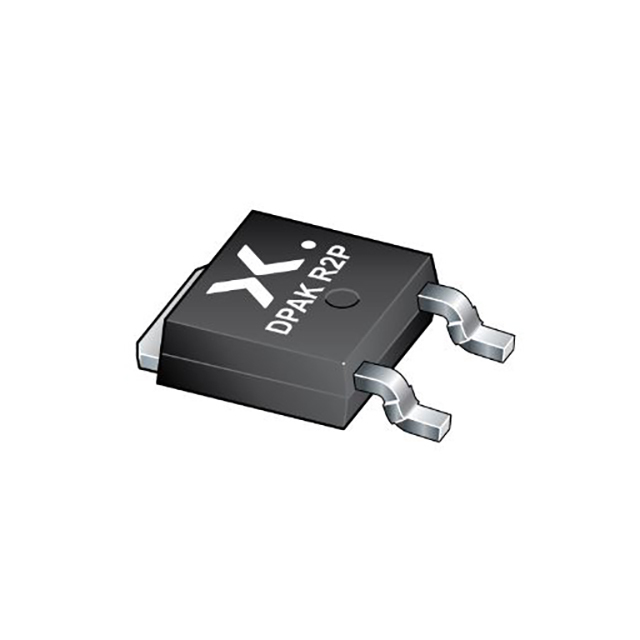

Diode 650 V 10A Surface Mount TO-252-2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 340pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 10A |
| Supplier Device Package | TO-252-2 |
| Operating Temperature - Junction | 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 10 A |
| Current - Reverse Leakage @ Vr | 60 µA @ 650 V |
| Qualification | AEC-Q101 |
