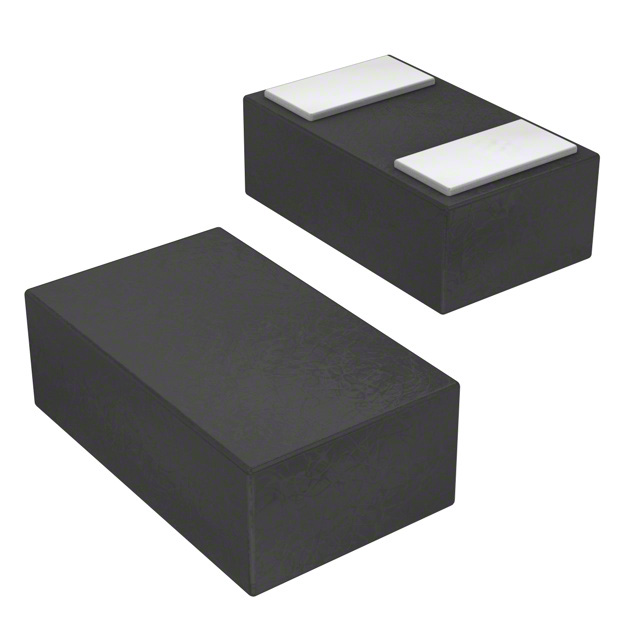

PMEG4010AESBYL
DIODE SCHOTTKY 40V 1A DSN1006-2Manufacturer: Nexperia USA Inc.
Categories: Single Diodes
Quality Control: Learn More
Diode 40 V 1A Surface Mount DSN1006-2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-XDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 3.1 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 75pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DSN1006-2 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 505 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 1.25 mA @ 40 V |
