PMEG4002ELD,315
DIODE SCHOT 40V 200MA DFN1006D-2Manufacturer: Nexperia USA Inc.
Categories: Single Diodes
Quality Control: Learn More

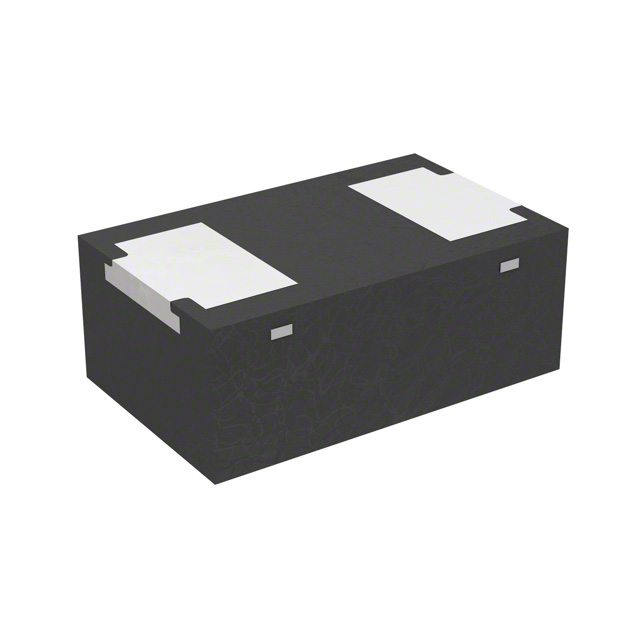

Diode 40 V 200mA Surface Mount, Wettable Flank DFN1006D-2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 2-XDFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 20pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | DFN1006D-2 |
| Operating Temperature - Junction | 150°C (Max) |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 200 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 40 V |
| Qualification | AEC-Q101 |
