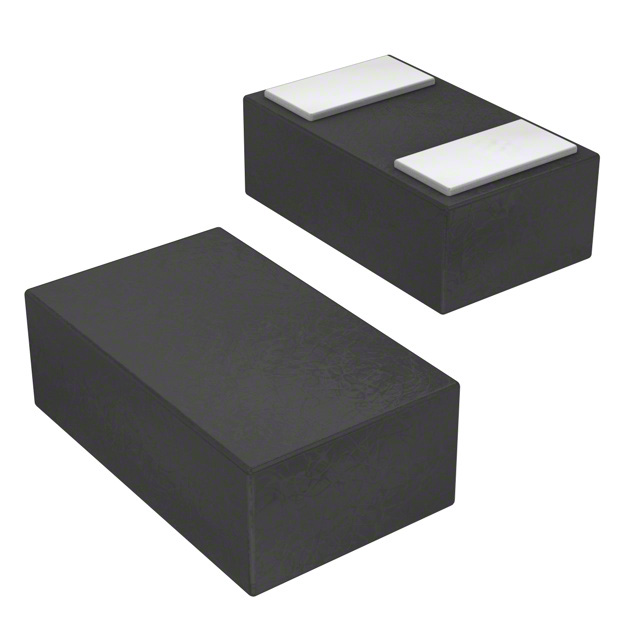

PMEG3010AESBYL
DIODE SCHOTTKY 30V 1A DSN1006-2Manufacturer: Nexperia USA Inc.
Categories: Single Diodes
Quality Control: Learn More
Diode 30 V 1A Surface Mount DSN1006-2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-XDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 3.5 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 86pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DSN1006-2 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 480 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 255 µA @ 20 V |
Request a Quote
