PMEG3005ELD-QYL
PMEG3005ELD-Q/SOD882D/DFN1006-Manufacturer: Nexperia USA Inc.
Categories: Single Diodes
Quality Control: Learn More
Diode 30 V 500mA Surface Mount, Wettable Flank DFN1006D-2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-XDFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 6 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 21pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 500mA |
| Supplier Device Package | DFN1006D-2 |
| Operating Temperature - Junction | 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 500 mA |
| Current - Reverse Leakage @ Vr | 500 µA @ 30 V |
| Qualification | AEC-Q101 |
Request a Quote
Clients Also Buy
BAS16J,115
DIODE GP 100V 250MA SOD323F
BAS521,315
DIODE GEN PURP 300V 250MA SOD523

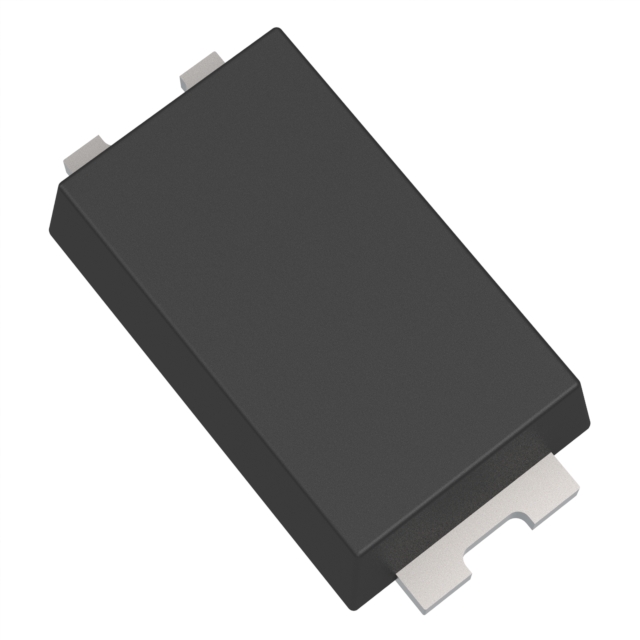

PMEG60T10ELXDX
