PMEG100T030ELPE-QZ
DIODE SCHOTTKY 100V 3A CFP15BManufacturer: Nexperia USA Inc.
Categories: Single Diodes
Quality Control: Learn More

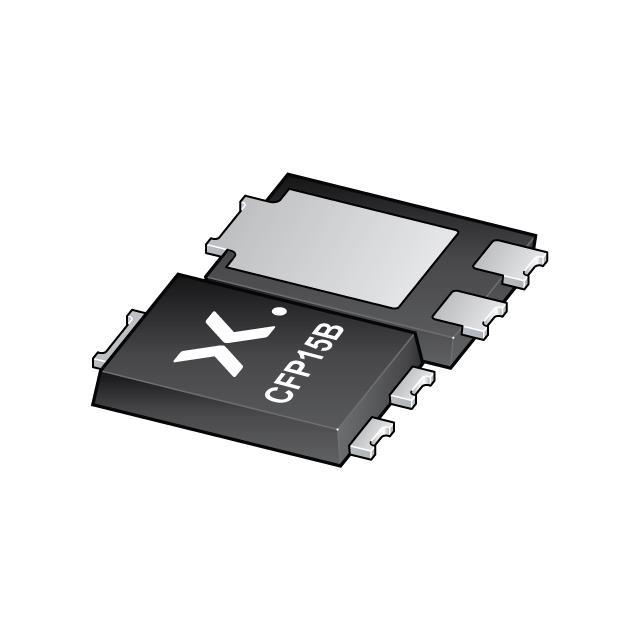

Diode 100 V 3A Surface Mount CFP15B
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-277, 3-PowerDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 12 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 410pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | CFP15B |
| Operating Temperature - Junction | 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 710 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 2.5 µA @ 100 V |
| Qualification | AEC-Q101 |
