PMEG040V030EPDZ
DIODE SCHOTTKY 40V 3A CFP15Manufacturer: Nexperia USA Inc.
Categories: Single Diodes
Quality Control: Learn More

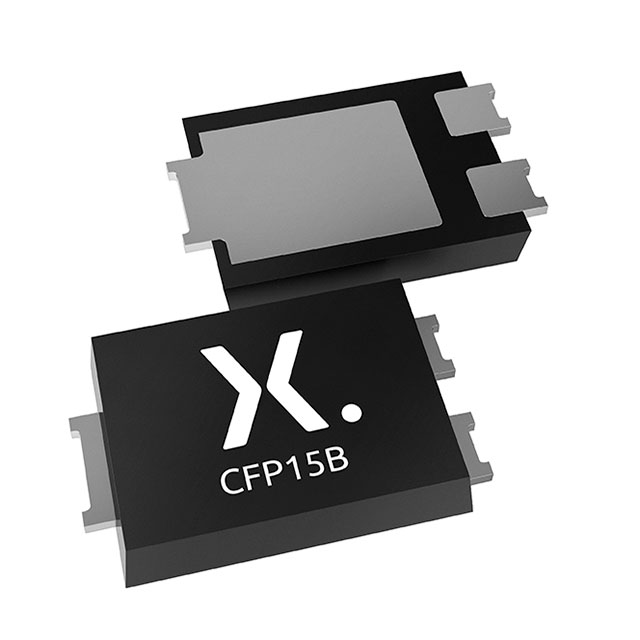

Nexperia USA Inc. PMEG040V030EPDZ is a Schottky diode designed for demanding applications. This component offers a 40V reverse voltage rating and a 3A average rectified current capability. Featuring a low forward voltage of 490mV at 3A and a reverse leakage of 120µA at 40V, it demonstrates efficient performance. The diode exhibits a reverse recovery time of 13ns, classifying it as fast recovery. Its capacitance is 395pF at 1V and 1MHz. The PMEG040V030EPDZ is housed in a TO-277, 3-PowerDFN (CFP15) package suitable for surface mounting. Qualified to AEC-Q101 and designated as Automotive grade, this device is engineered for reliability in automotive systems, consumer electronics, and power management solutions. It is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-277, 3-PowerDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 13 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 395pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | CFP15 |
| Operating Temperature - Junction | 175°C (Max) |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 490 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 120 µA @ 40 V |
| Qualification | AEC-Q101 |
