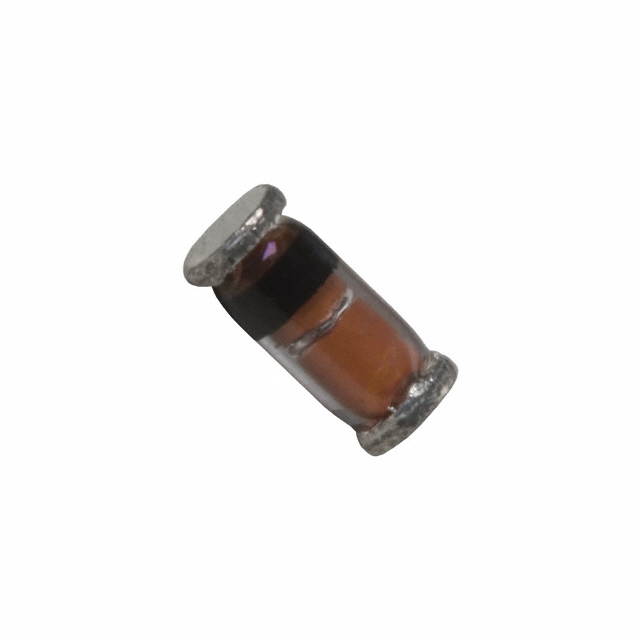

BAV103,135
DIODE GEN PURP 200V 250MA LLDSManufacturer: Nexperia USA Inc.
Categories: Single Diodes
Quality Control: Learn More
Nexperia USA Inc. BAV103-135 is a general-purpose diode designed for surface mount applications. This component features a 200V reverse voltage rating and a 250mA forward rectified current (Io). With a low forward voltage of 1.25V at 200mA and a reverse leakage current of 100nA at 200V, it exhibits efficient performance. The diode's capacitance is 5pF at 0V and 1MHz. Packaged in a DO-213AC, MINI-MELF, SOD-80 (LLDS; MiniMelf) format, it is supplied on cut tape. The BAV103-135 offers a fast recovery time of 50ns, making it suitable for applications requiring rapid switching. Key industries utilizing this component include automotive and industrial electronics. The maximum junction operating temperature is 175°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: Last Time BuyPackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 250mA |
| Supplier Device Package | LLDS; MiniMelf |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 200 V |
