NP100T12P2T3Z
SOT8053/NP2-35PManufacturer: Nexperia USA Inc.
Categories: IGBT Modules
Quality Control: Learn More

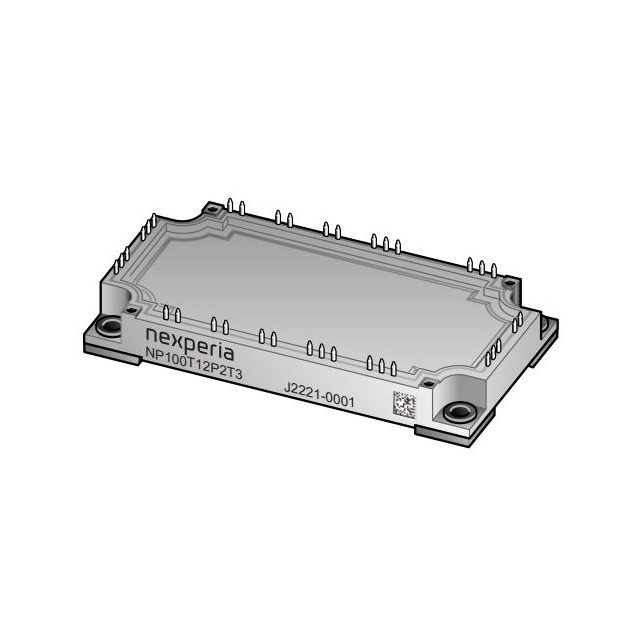

Nexperia USA Inc. offers the NP100T12P2T3Z, a robust IGBT module designed for demanding power applications. This component features a three-phase inverter configuration with an integrated brake function, built to withstand 1200 V and handle a continuous collector current of 50 A. The module is chassis mounted for efficient thermal management. Key electrical characteristics include a Vce(on) of 1.95V at 15V gate-emitter voltage and 50A collector current, and a collector-emitter breakdown voltage of 1200 V. Input capacitance (Cies) is specified at 3650 pF at 25 V. An integrated NTC thermistor aids in temperature monitoring. This Nexperia IGBT module is suitable for applications in industrial motor drives and power conversion systems, operating across a temperature range of -40°C to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Three Phase Bridge Rectifier |
| Configuration | Three Phase Inverter with Brake |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 50A |
| NTC Thermistor | Yes |
| Supplier Device Package | - |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 50 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 3650 pF @ 25 V |
