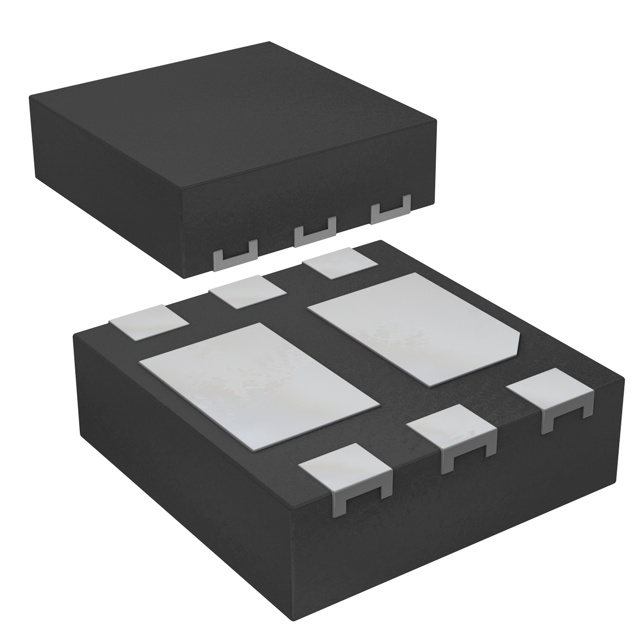

PMDPB56XNEAX
MOSFET 2N-CH 30V 3.1A 6DFNManufacturer: Nexperia USA Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 30V 3.1A (Ta) 485mW (Ta) Surface Mount DFN2020D-6
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 485mW (Ta) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 3.1A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 256pF @ 15V |
| Rds On (Max) @ Id, Vgs | 72mOhm @ 3.1A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 5nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.25V @ 250µA |
| Supplier Device Package | DFN2020D-6 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
