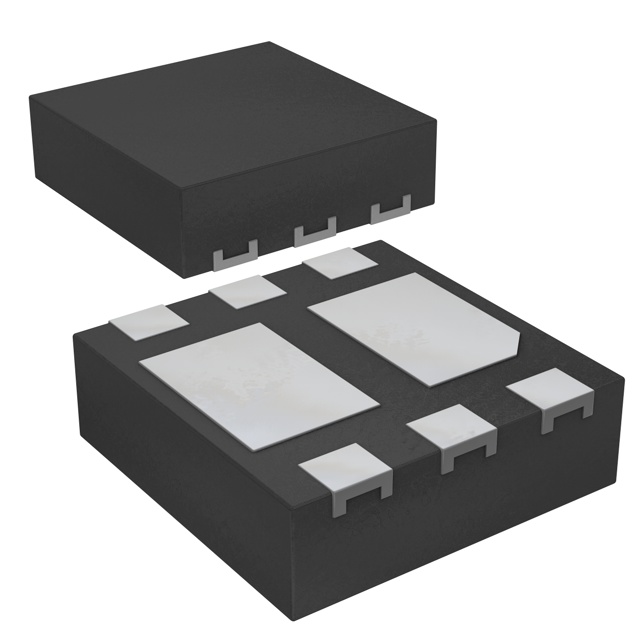

PMCPB5530XAX
PMCPB5530XA/SOT1118/HUSON6Manufacturer: Nexperia USA Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 20V 4.5A (Ta), 3.6A (Ta) 490mW (Ta) Surface Mount 6-HUSON (2x2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 6-UFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel Complementary |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 490mW (Ta) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta), 3.6A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 619pF @ 10V, 785pF @ 10V |
| Rds On (Max) @ Id, Vgs | 34mOhm @ 4.5A, 4.5V, 66mOhm @ 3.6A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 10nC @ 4.5V, 13nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | - |
| Supplier Device Package | 6-HUSON (2x2) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Request a Quote
