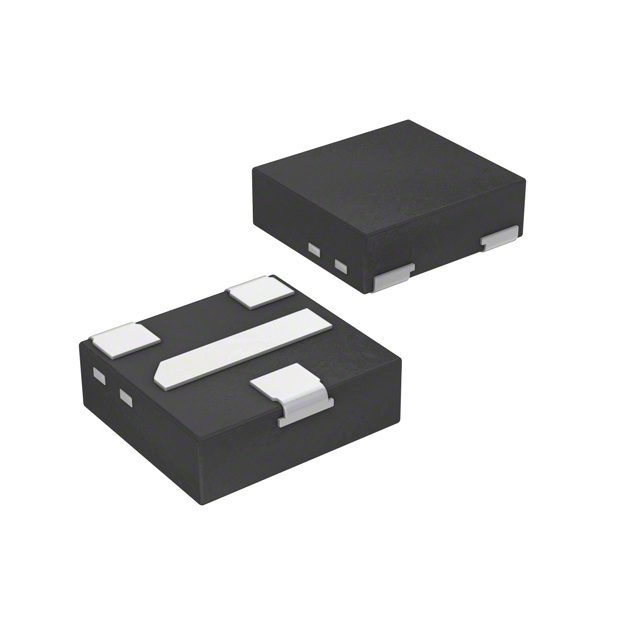

BAV170QA-QZ
BAV170QA-Q/SOT1215/DFN1010D-3Manufacturer: Nexperia USA Inc.
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 1 Pair Common Cathode 75 V 320mA Surface Mount 3-XDFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-XDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 3 µs |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 320mA |
| Supplier Device Package | DFN1010D-3 |
| Operating Temperature - Junction | 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Current - Reverse Leakage @ Vr | 5 nA @ 75 V |
| Qualification | AEC-Q101 |
