PCMF3DFN1X
CMC 6LN SMD ESDManufacturer: Nexperia USA Inc.
Categories: Common Mode Chokes
Quality Control: Learn More

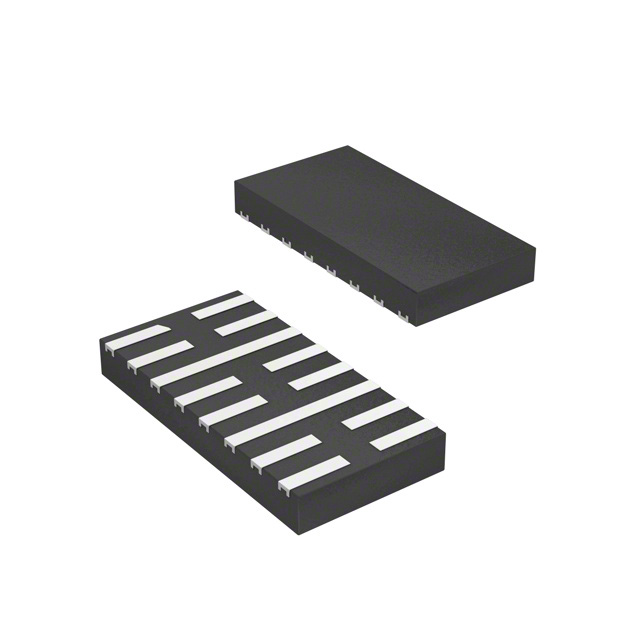

Nexperia USA Inc. PCMF3DFN1X is a 6-line common mode choke from the PCM series, designed for signal line filtering. This surface mount component, packaged in a 14-XFDFN with Tape & Reel (TR) supply, offers typical DC resistance of 5 Ohm. Its compact dimensions of 0.157" L x 0.079" W (4.00mm x 2.00mm) and a maximum height of 0.020" (0.50mm) make it suitable for space-constrained applications. The PCMF3DFN1X features TVS diode ESD protection, ensuring robust performance in demanding environments. Operating within a temperature range of -40°C to 85°C, this component finds application in automotive, industrial, and consumer electronics sectors where reliable signal integrity and protection are paramount.
Additional Information
Series: PCMRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | TVS Diode ESD Protection |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-XFDFN |
| Filter Type | Signal Line |
| Size / Dimension | 0.157"" L x 0.079"" W (4.00mm x 2.00mm) |
| Mounting Type | Surface Mount |
| Number of Lines | 6 |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Height (Max) | 0.020"" (0.50mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| Current Rating (Max) | - |
| DC Resistance (DCR) (Max) | 5Ohm (Typ) |
