PRMD12Z
TRANS PREBIAS 1NPN 1PNP 50V 6DFNManufacturer: Nexperia USA Inc.
Categories: Bipolar Transistor Arrays, Pre-Biased
Quality Control: Learn More

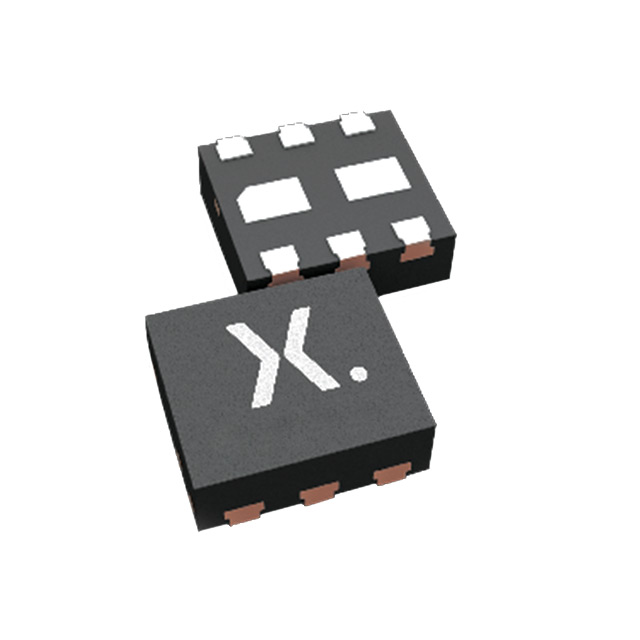

Pre-Biased Bipolar Transistor (BJT) 1 NPN Pre-Biased, 1 PNP 50V 100mA 230MHz 480mW Surface Mount DFN1412-6
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 6-XFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Transistor Type | 1 NPN Pre-Biased, 1 PNP |
| Power - Max | 480mW |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 1µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 5V |
| Frequency - Transition | 230MHz |
| Resistor - Base (R1) | 47kOhms |
| Resistor - Emitter Base (R2) | 47kOhms |
| Supplier Device Package | DFN1412-6 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
