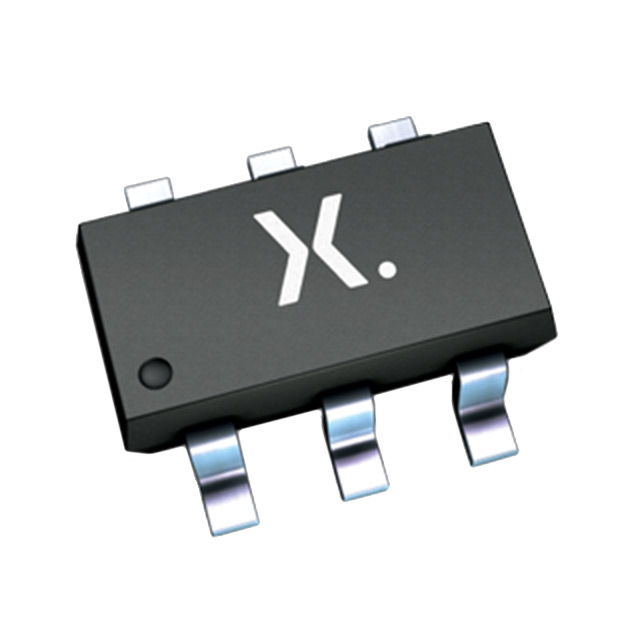

PIMN31F
PIMN31/SOT457/SC-74Manufacturer: Nexperia USA Inc.
Categories: Bipolar Transistor Arrays, Pre-Biased
Quality Control: Learn More
Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased 50V 500mA 290mW Surface Mount SC-74
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74, SOT-457 |
| Mounting Type | Surface Mount |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased |
| Power - Max | 290mW |
| Current - Collector (Ic) (Max) | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 2.5mA, 50mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 50mA, 5V |
| Frequency - Transition | - |
| Resistor - Base (R1) | 1kOhms |
| Resistor - Emitter Base (R2) | 10kOhms |
| Supplier Device Package | SC-74 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
