74LVC2G53GM,125
IC SWITCH SPDT X 1 10OHM 8XQFNManufacturer: Nexperia USA Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Nexperia USA Inc. 74LVC series SPDT analog switch, part number 74LVC2G53GM-125. This single-circuit, 2:1 multiplexer/demultiplexer features a low on-state resistance of 10 Ohms and a -3dB bandwidth of 300MHz. Designed for surface mounting within an 8-XQFN (1.6x1.6) package, it operates across a single supply voltage range of 1.65V to 5.5V and is specified for an operating temperature range of -40°C to 125°C. Key specifications include a charge injection of 7.5pC and a maximum off-state leakage current of 5µA. This component is well-suited for applications in consumer electronics, industrial automation, and telecommunications.
Additional Information
Series: 74LVCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

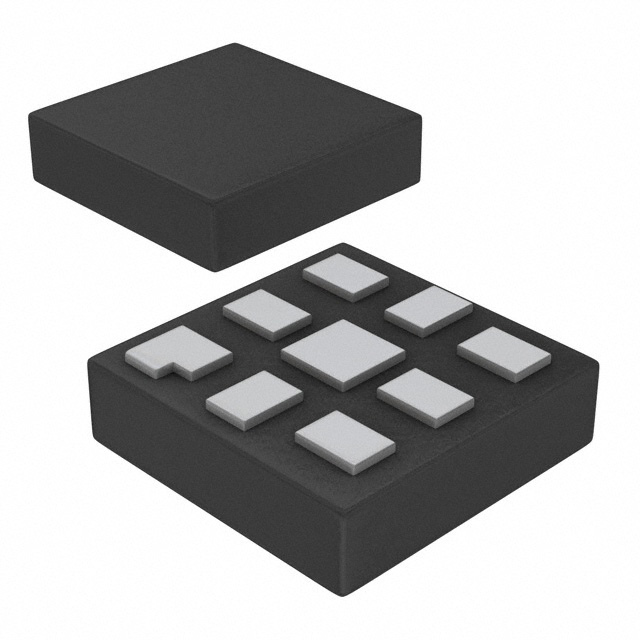

| Package / Case | 8-XFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 10Ohm |
| -3db Bandwidth | 300MHz |
| Supplier Device Package | 8-XQFN (1.6x1.6) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 7.5pC |
| Crosstalk | - |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | 3.8ns, 3.8ns |
| Channel Capacitance (CS(off), CD(off)) | 6pF |
| Current - Leakage (IS(off)) (Max) | 5µA |
| Number of Circuits | 1 |
