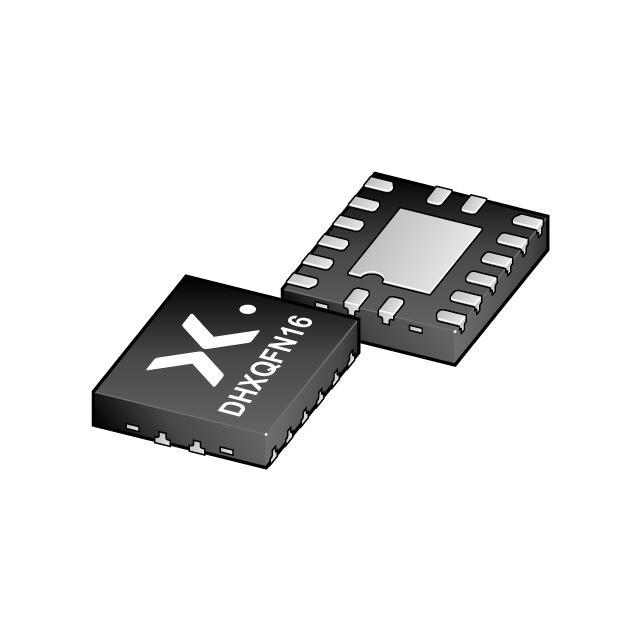

74HCT4053BZX
IC SWITCH SPDTX3 160OHM 16DHXQFNManufacturer: Nexperia USA Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
3 Circuit IC Switch 2:1 160Ohm 16-DHXQFN (2x2.4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-XFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 160Ohm |
| -3db Bandwidth | 170MHz |
| Supplier Device Package | 16-DHXQFN (2x2.4) |
| Voltage - Supply, Single (V+) | 2V ~ 5.5V, 4.5V ~ 10V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | -60dB @ 1MHz |
| Switch Circuit | SPDT - Open/Closed |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 8Ohm |
| Switch Time (Ton, Toff) (Max) | 48ns, 44ns |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Number of Circuits | 3 |
