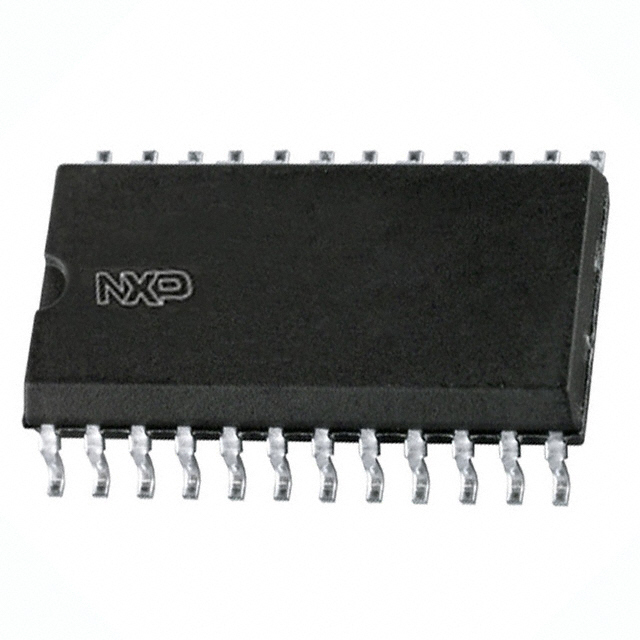

74HC4067D-Q100J
IC MUX 16:1 120OHM 24SOManufacturer: Nexperia USA Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Nexperia USA Inc. 74HC4067D-Q100J is a 16:1 analog multiplexer/demultiplexer designed for automotive applications. This single-circuit device features a low on-state resistance of 120 Ohms maximum and a -3dB bandwidth of 100MHz, making it suitable for signal routing in complex systems. The 74HC4067D-Q100J offers a channel-to-channel resistance matching of 6 Ohms and exhibits a channel capacitance of 3.5pF when off. Operating within a temperature range of -40°C to 125°C, it supports single supply voltages from 2V to 10V. The component is supplied in a 24-SOIC package and is qualified to AEC-Q100 standards, commonly found in automotive infotainment and sensor systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 120Ohm |
| -3db Bandwidth | 100MHz |
| Supplier Device Package | 24-SO |
| Voltage - Supply, Single (V+) | 2V ~ 10V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 6Ohm |
| Switch Time (Ton, Toff) (Max) | 45ns, 45ns |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Grade | Automotive |
| Number of Circuits | 1 |
| Qualification | AEC-Q100 |
