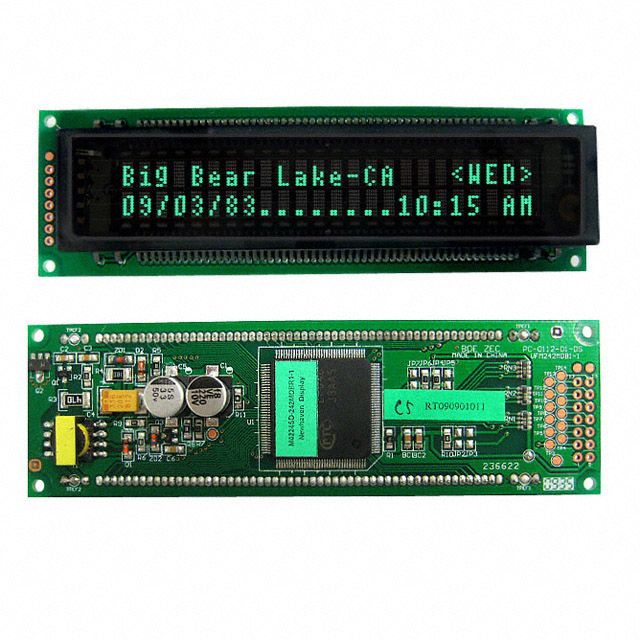

M0224SD-242MDBR1-1
MODULE VF CHAR 2X24 5.34MMManufacturer: Newhaven Display Intl
Categories: Vacuum Fluorescent (VFD)
Quality Control: Learn More
Newhaven Display Intl Module VF CHAR 2X24 5.34MM, part number M0224SD-242MDBR1-1, is a character-based Vacuum Fluorescent Display (VFD) module. This unit features a 24-character by 2-line display format, with each character rendered in a 5x8 dot matrix. The module operates within a voltage supply range of 4.5V to 5.5V and supports a parallel interface for data communication. Its physical dimensions are 118.00mm in length, 36.00mm in width, and 16.50mm in height, with a viewing area measuring 84.20mm by 11.50mm. The individual character dimensions are 5.29mm high by 2.10mm wide. This VFD module is suitable for applications requiring clear, high-contrast alphanumeric display in industrial control systems and test and measurement equipment. The operating temperature range is -20°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | Character |
| Format | 5 x 8 Dots |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 84.20mm L x 11.50mm W |
| Character Size | 5.29mm H x 2.10mm W |
| Number of Dots | - |
| Display Format | 24 x 2 |
| Outline L x W x H | 118.00mm x 36.00mm x 16.50mm |
