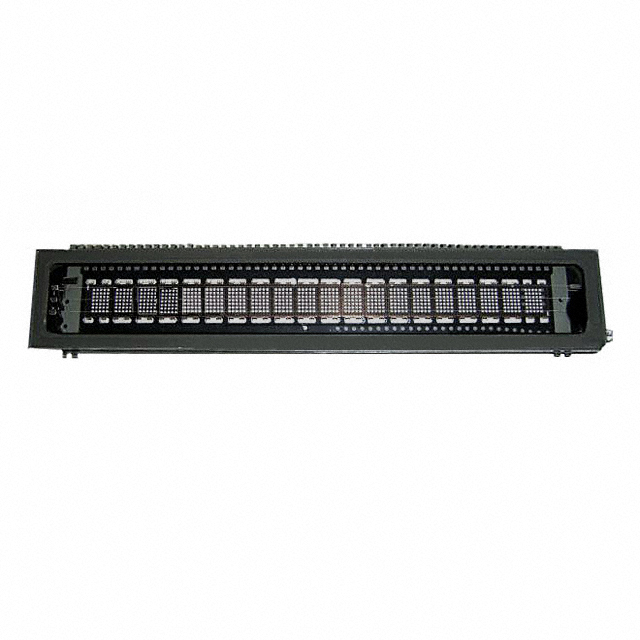

D0120SD-20-2004F
DISPLAY VFD DOT MAT 1X20 4.9MMManufacturer: Newhaven Display Intl
Categories: Vacuum Fluorescent (VFD)
Quality Control: Learn More
Newhaven Display Intl D0120SD-20-2004F is a Vacuum Fluorescent Display (VFD) offering a 20 character by 1 line format. This character display utilizes a 5x7 dot matrix for each character, with individual characters measuring 4.90mm in height and 3.40mm in width. The overall display dimensions are 115.70mm (L) x 20.50mm (W) x 6.50mm (H). This component is designed for operation across an industrial temperature range of -40°C to 85°C. Applications for this VFD include industrial control systems, instrumentation, and point-of-sale equipment where clear, high-contrast alphanumeric display is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | Character |
| Format | 5 x 7 Dots |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | - |
| Viewing Area | - |
| Character Size | 4.90mm H x 3.40mm W |
| Number of Dots | - |
| Display Format | 20 x 1 |
| Outline L x W x H | 115.70mm x 20.50mm x 6.50mm |
