NHD-7.0-800480WF-CTXI#-T
GRAPHIC DISPLAY TFT RGB 7Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

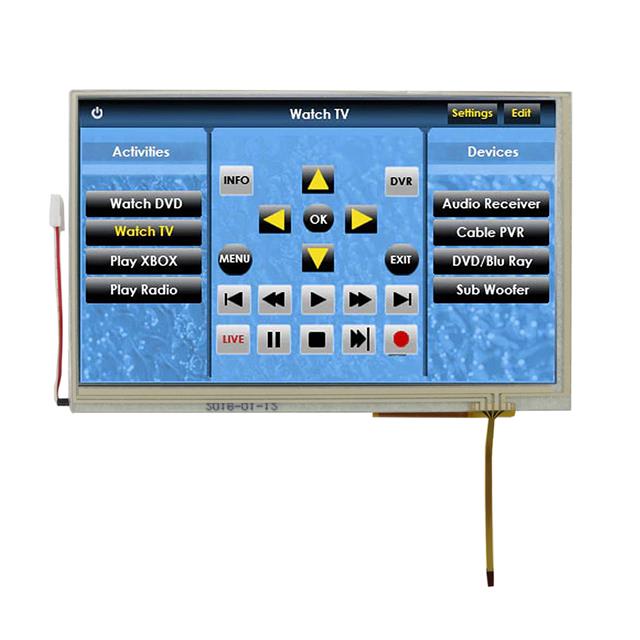

Newhaven Display Intl NHD-7-0-800480WF-CTXI-T is a 7-inch (177.80mm) transmissive TFT-Color graphic LCD module with WVGA resolution (800 x 480 pixels). This display features a white LED backlight and a resistive touchscreen interface. The controller type is SSD1963 supporting an 8-bit RGB interface for full Red, Green, Blue (RGB) color output. The module's viewing area measures 155.00mm wide by 93.04mm high. This component is suitable for applications in industrial automation, medical devices, and consumer electronics requiring detailed graphical interfaces.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | SSD1963 (8-Bit, RGB) |
| Viewing Area | 155.00mm W x 93.04mm H |
| Dot Pixels | 800 x 480 (WVGA) |
| Controller Type | SSD1963 |
| Diagonal Screen Size | 7"" (177.80mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | Resistive |
Request a Quote
