NHD-7.0-800480EF-ATXV#
GRAPHIC DISPLAY TFT RGB 7Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

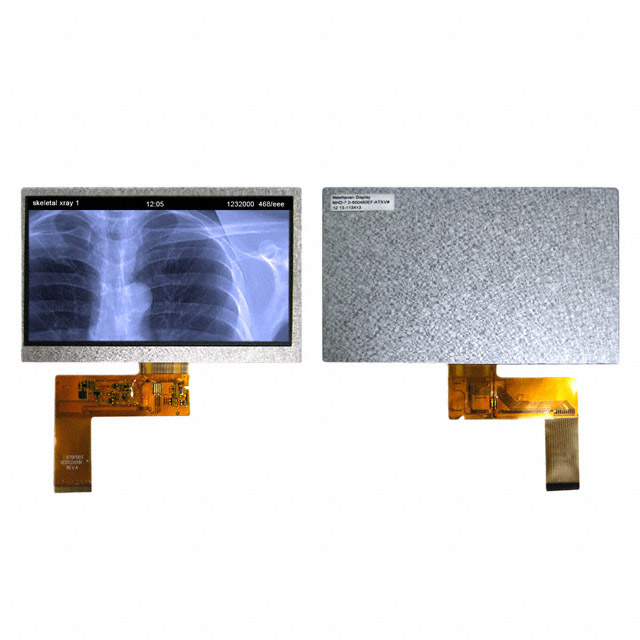

Newhaven Display Intl NHD-7-0-800480EF-ATXV- is a transmissive TFT-LCD graphic display module featuring an 800 x 480 WVGA resolution. This color display utilizes a 24-bit RGB parallel interface for direct color data input, rendering Red, Green, and Blue (RGB) graphics. The module is illuminated by a white LED backlight, providing consistent visibility. With a diagonal screen size of 7 inches (177.80mm) and a viewing area of 154.08mm W x 85.92mm H, it is suitable for applications requiring detailed visual output. This component finds use in industrial control systems, medical instrumentation, and advanced human-machine interfaces. The NHD-7-0-800480EF-ATXV- is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel, 24-Bit (RGB) |
| Viewing Area | 154.08mm W x 85.92mm H |
| Dot Pixels | 800 x 480 (WVGA) |
| Diagonal Screen Size | 7"" (177.80mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | - |
