NHD-5.7-640480WF-CTXL #-T
GRAPHIC DISPLAY TFT RGB 5.7Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

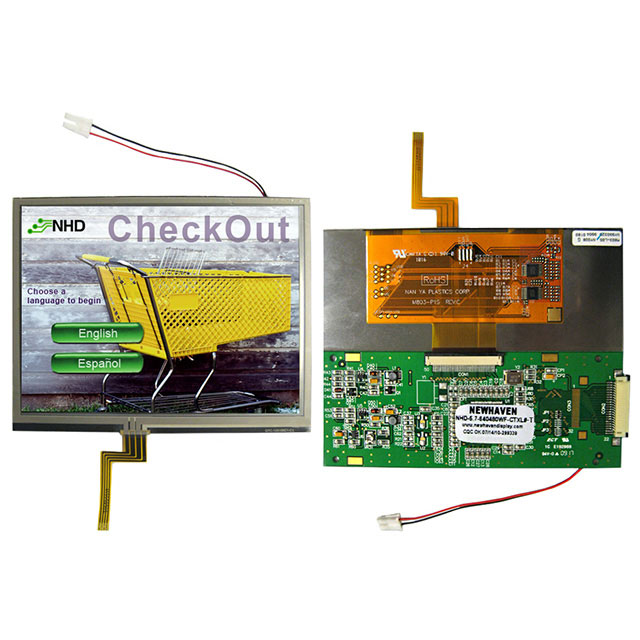

Newhaven Display Intl NHD-5-7-640480WF-CTXL-T is a 5.7-inch transmissive TFT-color graphic LCD module featuring 640 x 480 (VGA) resolution. This display supports Red, Green, Blue (RGB) graphics and utilizes an SSD1963 controller with an 8-bit RGB interface for robust graphical output. The module includes a white LED backlight for enhanced visibility in various lighting conditions and a resistive touchscreen for intuitive user interaction. The viewing area measures 118.20mm wide by 88.70mm high. This component is suitable for applications in industrial control, medical equipment, and point-of-sale systems where detailed visual feedback is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | SSD1963 (8-Bit, RGB) |
| Viewing Area | 118.20mm W x 88.70mm H |
| Dot Pixels | 640 x 480 (VGA) |
| Diagonal Screen Size | 5.7"" (144.78mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | Resistive |
