NHD-5.7-320240WFB-CTXI#-T-1
GRAPHIC DISPLAY TFT RGB 5.7Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

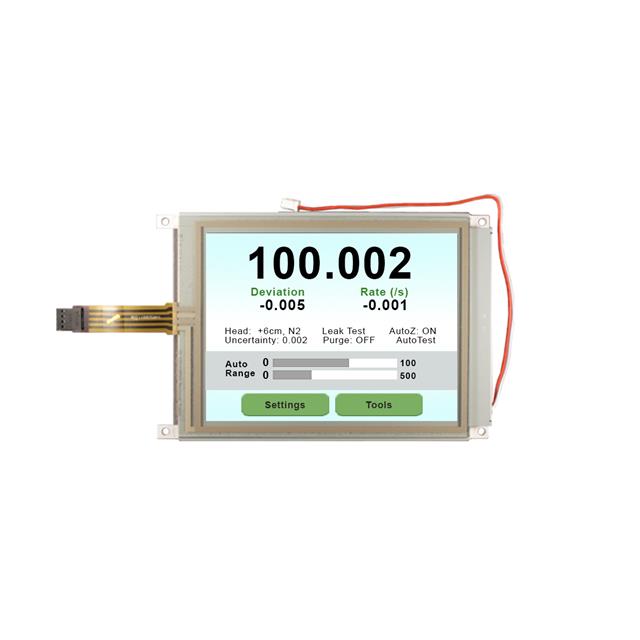

Newhaven Display Intl NHD-5-7-320240WFB-CTXI-T-1 is a 5.7-inch (144.78mm) diagonal transmissive TFT-Color graphic LCD module featuring a QVGA resolution of 320 x 240 pixels. This display utilizes an SSD1963 controller, supporting an 8-bit RGB interface for vibrant Red, Green, and Blue graphics. The module includes a white LED backlight for illumination. A resistive touchscreen layer is integrated for user interaction. The viewing area measures 118.28mm wide by 88.60mm high. This component is commonly found in industrial automation, medical equipment, and point-of-sale systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | SSD1963 (8-Bit, RGB) |
| Viewing Area | 118.28mm W x 88.60mm H |
| Dot Pixels | 320 x 240 (QVGA) |
| Controller Type | SSD1963 |
| Diagonal Screen Size | 5.7"" (144.78mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | Resistive |
