NHD-5.7-320240WFB-ATXI#-1
GRAPHIC DISPLAY TFT RGB 5.7Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

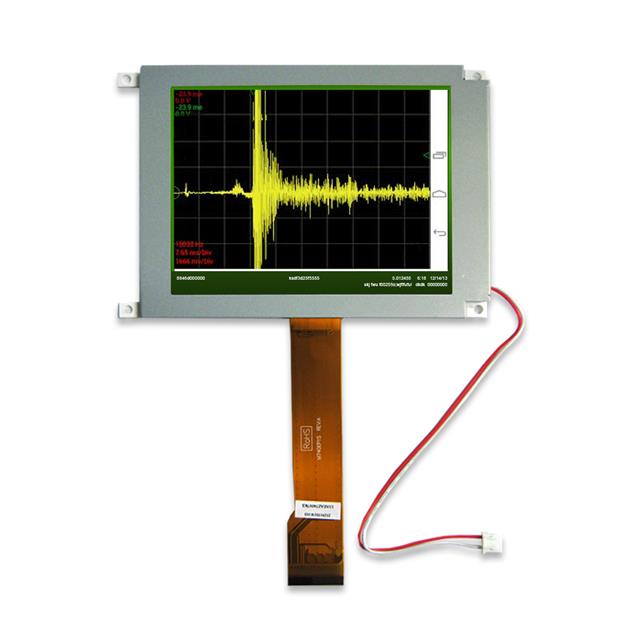

Newhaven Display Intl NHD-5-7-320240WFB-ATXI-1 is a 5.7-inch transmissive Thin-Film Transistor (TFT) color graphic display module. This module features a QVGA resolution of 320 x 240 dots and utilizes a 24-bit RGB parallel interface for full color reproduction. The display is equipped with a white LED backlight for illumination. Its typical applications include industrial control systems, medical equipment, and point-of-sale terminals where clear and detailed graphical output is required. The viewing area measures 118.28mm in width by 88.60mm in height. This component is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel, 24-Bit (RGB) |
| Viewing Area | 118.28mm W x 88.60mm H |
| Dot Pixels | 320 x 240 (QVGA) |
| Diagonal Screen Size | 5.7"" (144.78mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | - |
