NHD-5.0-800480MB-ATXL-CTP
GRAPHIC DISPLAY TFT RGB 5Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

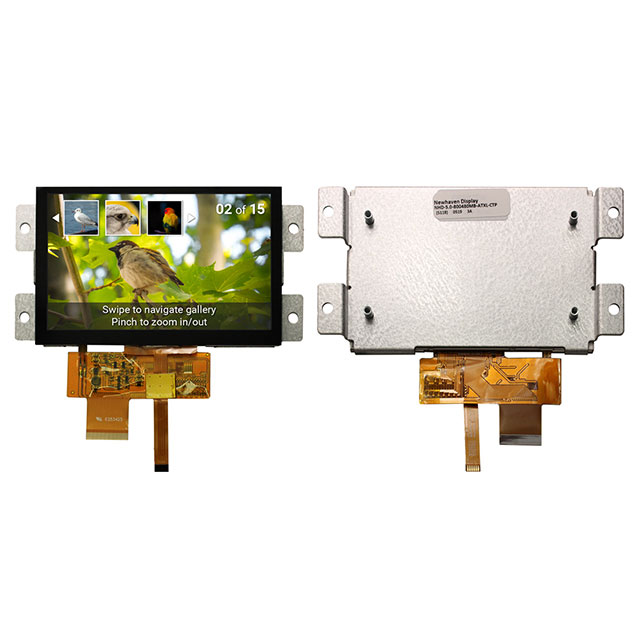

Newhaven Display Intl NHD-5-0-800480MB-ATXL-CTP is a 5-inch (127.00mm) transmissive TFT-RGB color graphic display module. It features an 800 x 480 resolution with a 24-bit parallel RGB interface for rich color reproduction. The display is equipped with a white LED backlight and a capacitive touchscreen controller, the FT5308, for intuitive user interaction. The viewing area measures 108.00mm W x 64.80mm H. This component is suitable for demanding applications in industrial automation, medical devices, and consumer electronics where high-quality visual output and touch functionality are critical. The NHD-5-0-800480MB-ATXL-CTP is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel, 24-Bit (RGB) |
| Viewing Area | 108.00mm W x 64.80mm H |
| Dot Pixels | 800 x 480 |
| Controller Type | FT5308 |
| Diagonal Screen Size | 5"" (127.00mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | Capacitive |
