NHD-4.3-480272FT-CTXL-T
GRAPHIC DISPLAY TFT RGB 4.3Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

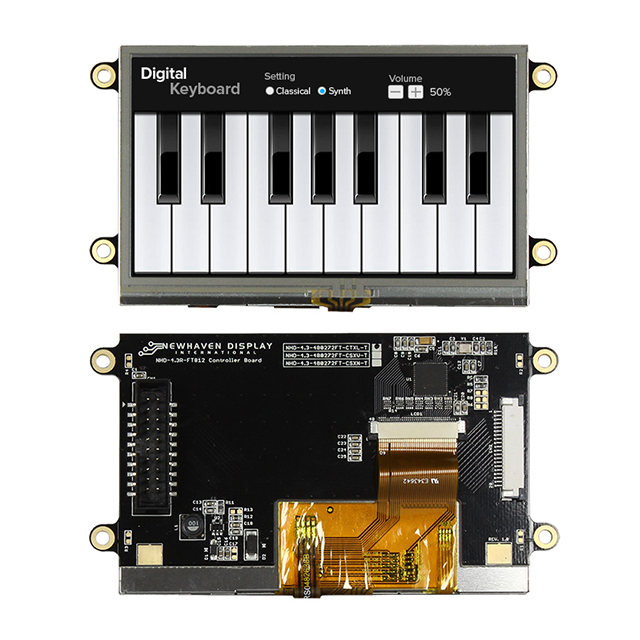

Newhaven Display Intl NHD-4-3-480272FT-CTXL-T is a 4.3" (109.22mm) diagonal transmissive TFT-Color graphic display module. This WQVGA resolution module features a 480 x 272 dot pixel array with Red, Green, Blue (RGB) graphics. The NHD-4-3-480272FT-CTXL-T utilizes an FT812 controller and an SPI interface for efficient data transfer. It includes a white LED backlight for illumination. The display incorporates a resistive touchscreen for user interaction. The viewing area measures 98.70mm W x 57.50mm H. This component is commonly found in industrial control systems, medical equipment, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | SPI |
| Viewing Area | 98.70mm W x 57.50mm H |
| Dot Pixels | 480 x 272 (WQVGA) |
| Controller Type | FT812 |
| Diagonal Screen Size | 4.3"" (109.22mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | Resistive |
