NHD-320240WX-COTFH-V#I041
GRAPHIC DISPLAY FSTN GRAY -Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

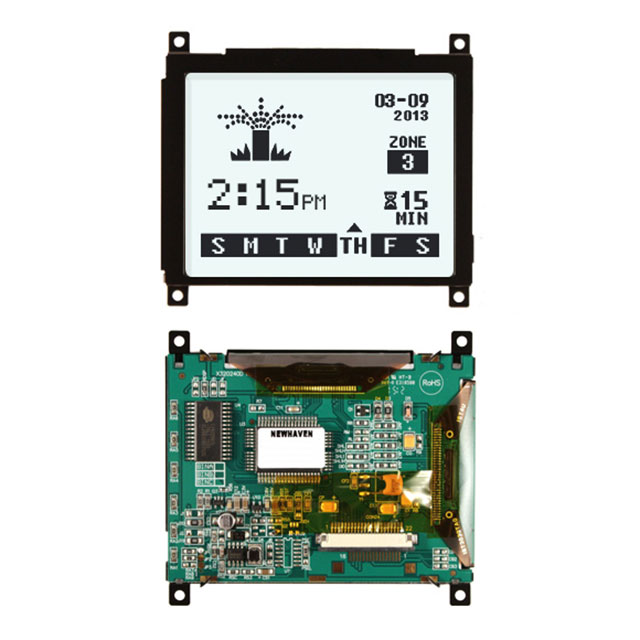

Newhaven Display Intl NHD-320240WX-COTFH-V-I041 is a transflective FSTN graphic LCD display module. This component features a 320 x 240 (QVGA) resolution with a gray graphics color. The display utilizes a parallel 8-bit interface for data communication. Its transflective nature allows for operation in both ambient light and with its white LED backlight. The module’s viewing area measures 81.40mm W x 61.00mm H. This display is suitable for applications requiring clear visual output in diverse lighting conditions, commonly found in industrial control, instrumentation, and medical device sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - White |
| Interface | Parallel, 8-Bit |
| Viewing Area | 81.40mm W x 61.00mm H |
| Dot Pixels | 320 x 240 (QVGA) |
| Diagonal Screen Size | - |
| Background Color | White |
| Graphics Color | Gray |
| Touchscreen | - |
