NHD-320240WX-COTFH-V#I040
GRAPHIC DISPLAY FSTN GRAY -Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

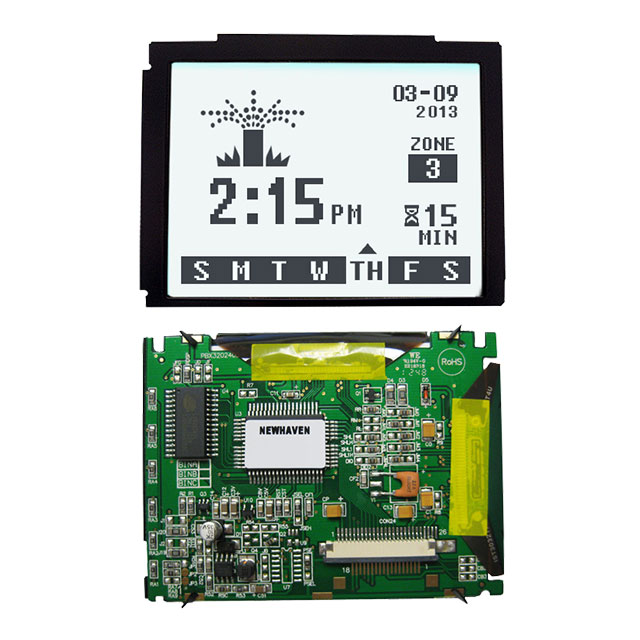

Newhaven Display Intl NHD-320240WX-COTFH-V-I040 is a graphic LCD display module featuring a 320 x 240 (QVGA) resolution. This transflective FSTN display utilizes a Film Super-Twisted Nematic Parallel configuration, offering a gray graphics color suitable for various environmental lighting conditions. The module includes a white LED backlight for improved visibility. It interfaces via an 8-bit parallel connection. The viewing area measures 81.40mm W x 61.00mm H. This component is commonly found in industrial automation, test and measurement equipment, and consumer electronics where clear graphical representation is essential. The display is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - White |
| Interface | Parallel, 8-Bit |
| Viewing Area | 81.40mm W x 61.00mm H |
| Dot Pixels | 320 x 240 (QVGA) |
| Diagonal Screen Size | - |
| Background Color | White |
| Graphics Color | Gray |
| Touchscreen | - |
