NHD-320240WG-BXFGH-VZ#
GRAPHIC DISPLAY STN GRAY -Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

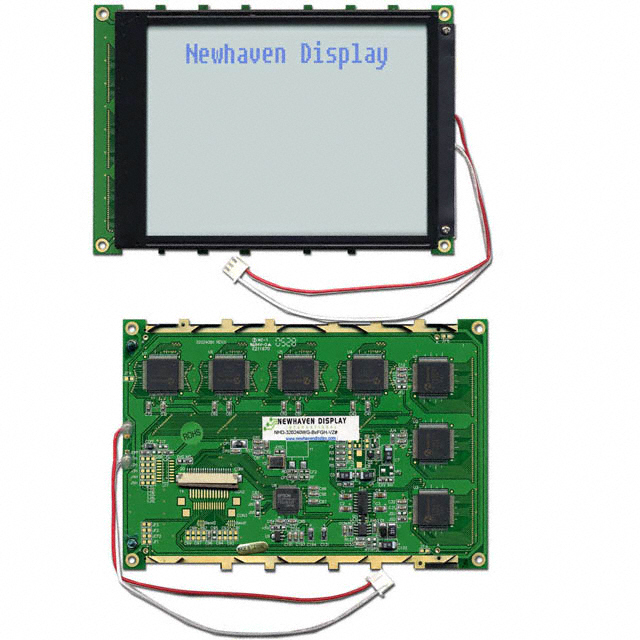

Newhaven Display Intl NHD-320240WG-BXFGH-VZ- is a transflective STN graphic LCD display module featuring a 320 x 240 (QVGA) resolution. This Super-Twisted Nematic display utilizes a parallel, 8-bit interface for data communication. The module provides a gray graphics output on a white background, with a CCFL backlight for illumination. Its transflective nature allows for excellent readability in both ambient and backlit conditions. Ideal for applications requiring clear graphical representation, this display is commonly found in industrial control systems, medical instrumentation, and point-of-sale terminals. The viewing area measures 122.00mm wide by 92.00mm high, delivered in box packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | CCFL |
| Interface | Parallel, 8-Bit |
| Viewing Area | 122.00mm W x 92.00mm H |
| Dot Pixels | 320 x 240 (QVGA) |
| Diagonal Screen Size | - |
| Background Color | White |
| Graphics Color | Gray |
| Touchscreen | - |
