NHD-320240WG-BXFFH-VZ#
GRAPHIC DISPLAY FSTN GRAY -Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

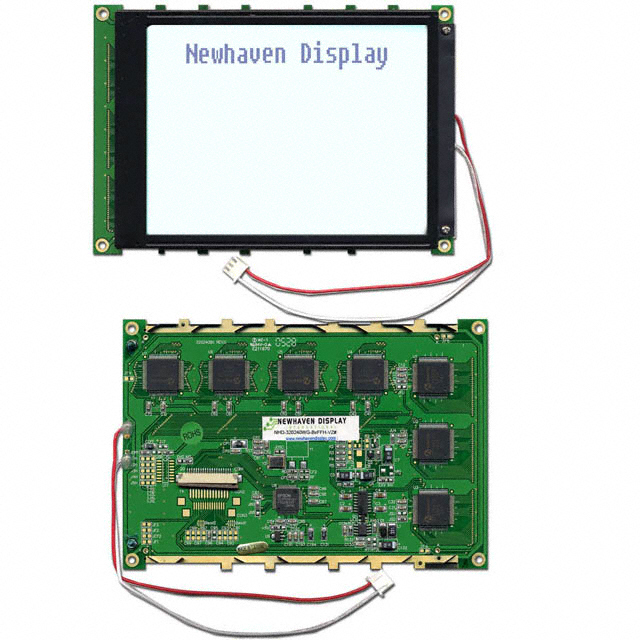

Newhaven Display Intl NHD-320240WG-BXFFH-VZ- is a graphic LCD display module featuring a transflective FSTN (Film Super-Twisted Nematic) display with a gray graphics color. This module offers a resolution of 320 x 240 (QVGA) pixels. The display utilizes an 8-bit parallel interface for data transfer. The module’s transflective nature allows for optimal readability in both ambient and direct lighting conditions. It is designed with a CCFL backlight for illumination. The viewing area measures 122.00mm in width by 92.00mm in height. This display module is suitable for applications in industrial control systems, medical devices, and consumer electronics where clear, graphic information display is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | CCFL |
| Interface | Parallel, 8-Bit |
| Viewing Area | 122.00mm W x 92.00mm H |
| Dot Pixels | 320 x 240 (QVGA) |
| Diagonal Screen Size | - |
| Background Color | White |
| Graphics Color | Gray |
| Touchscreen | - |
