NHD-320240WG-BOTML-VZ#030
GRAPHIC DISPLAY STN WHITE -Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

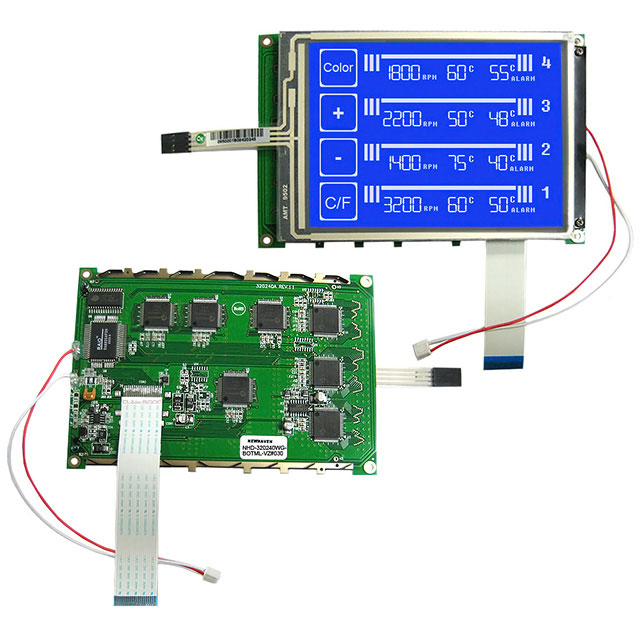

Newhaven Display Intl NHD-320240WG-BOTML-VZ-030 is a transmissive, STN (Super-Twisted Nematic) graphic LCD module featuring a 320 x 240 (QVGA) resolution. This display utilizes a white STN matrix and offers a resistive touchscreen interface. The parallel, 8-bit interface simplifies integration, and the RA-8835 controller ensures robust graphics rendering. The module is illuminated by a white LED backlight for clear visibility. With a viewing area of 122.00mm W x 92.00mm H, this component is suitable for applications in industrial automation, medical devices, and consumer electronics requiring detailed graphical output. The display mode is transmissive, and the graphics color is white with a blue background.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel, 8-Bit |
| Viewing Area | 122.00mm W x 92.00mm H |
| Dot Pixels | 320 x 240 (QVGA) |
| Controller Type | RA-8835 |
| Diagonal Screen Size | - |
| Background Color | Blue |
| Graphics Color | White |
| Touchscreen | Resistive |
