NHD-3.5-320240MB-ASXN-CTP
GRAPHIC DISPLAY TFT RGB 3.5Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

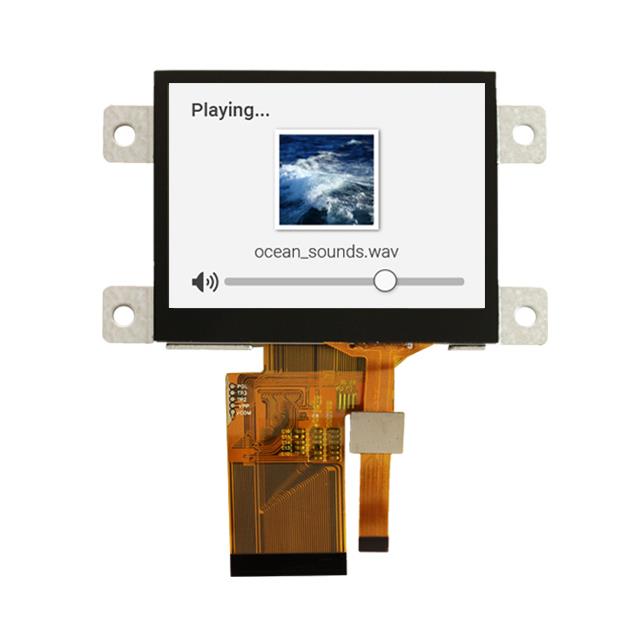

Newhaven Display Intl NHD-3-5-320240MB-ASXN-CTP is a transmissive, color TFT graphic LCD module featuring a 3.5-inch diagonal display with a 320 x 240 dot pixel resolution. This module supports a 24-bit RGB parallel interface for vivid graphics, rendering Red, Green, and Blue color data. The display is equipped with a white LED backlight for illumination. Its capacitive touchscreen enables intuitive user interaction. The viewing area measures 70.08mm in width by 52.56mm in height. This component finds application in industrial control systems, medical equipment, and point-of-sale devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel, 24-Bit (RGB) |
| Viewing Area | 70.08mm W x 52.56mm H |
| Dot Pixels | 320 x 240 |
| Diagonal Screen Size | 3.5"" (88.90mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | Capacitive |
