NHD-3.5-320240FT-CSXV-CTP
GRAPHIC DISPLAY TFT RGB 3.5Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

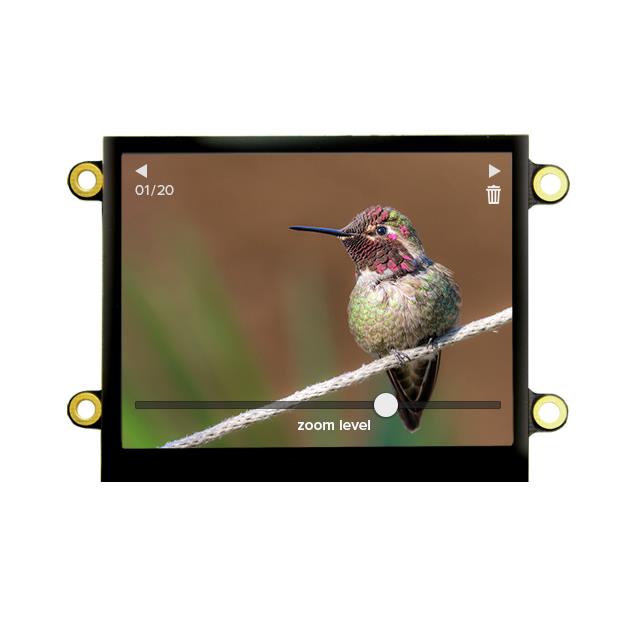

Newhaven Display Intl NHD-3-5-320240FT-CSXV-CTP is a 3.5-inch (88.90mm) diagonal transmissive TFT-Color graphic LCD module featuring QVGA resolution (320 x 240 pixels). This display offers full RGB color reproduction and is driven by the FT813 controller with an SPI interface, facilitating efficient data transfer. The module incorporates an LED backlight for consistent illumination. A key feature is its integrated capacitive touchscreen, providing intuitive user interaction. The viewing area measures 70.68mm wide by 53.16mm high. This component finds application in various sectors including industrial automation, medical devices, and consumer electronics where detailed graphical interfaces are required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | SPI |
| Viewing Area | 70.68mm W x 53.16mm H |
| Dot Pixels | 320 x 240 (QVGA) |
| Controller Type | FT813 |
| Diagonal Screen Size | 3.5"" (88.90mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | Capacitive |
