NHD-24064WG-ATFH-VZ#000CB
GRAPHIC DISPLAY FSTN BLACK (WHITManufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

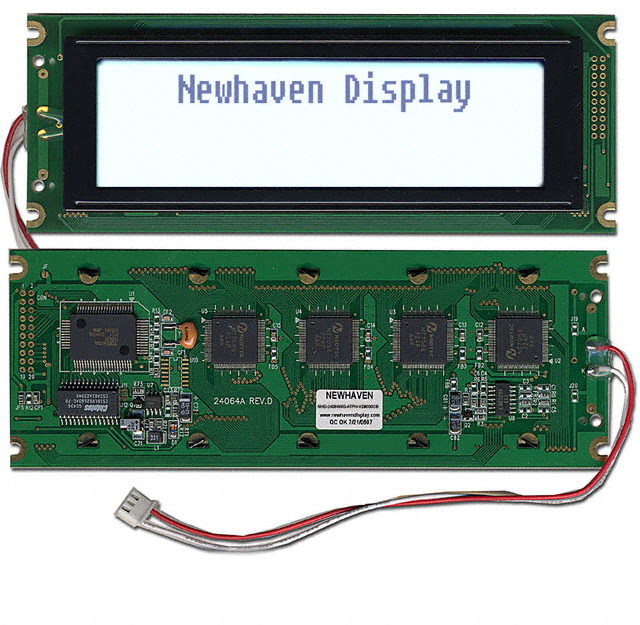

Newhaven Display Intl NHD-24064WG-ATFH-VZ-000CB is a graphic LCD display module featuring a transflective FSTN (Film Super-Twisted Nematic) display technology. This module offers a resolution of 240 x 64 dot pixels with a black (white-inverted) graphics color on a white background. The display utilizes an 8-bit parallel interface for data transfer. It is equipped with a white LED backlight for enhanced visibility in various ambient light conditions. The transflective nature allows for sunlight readability without relying solely on the backlight. This component is suitable for applications in industrial control, medical instrumentation, and consumer electronics where clear graphical information is essential. The viewing area measures 133.00mm W x 39.00mm H.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - White |
| Interface | Parallel, 8-Bit |
| Viewing Area | 133.00mm W x 39.00mm H |
| Dot Pixels | 240 x 64 |
| Diagonal Screen Size | - |
| Background Color | White (Black - Inverted) |
| Graphics Color | Black (White - Inverted) |
| Touchscreen | - |
