NHD-2.4-240320SF-CTXI#-T1
GRAPHIC DISPLAY TFT RGB 2.4Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

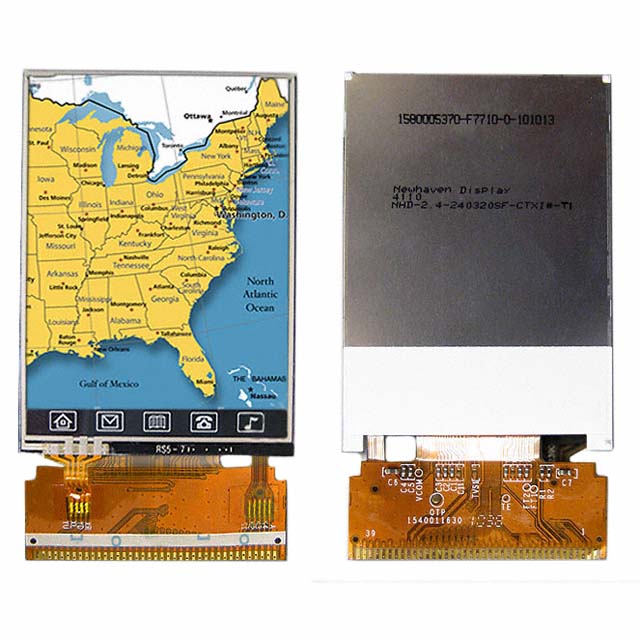

Newhaven Display Intl NHD-2-4-240320SF-CTXI-T1 is a 2.4-inch diagonal transmissive TFT-Color LCD module featuring a 240 x 320 pixel resolution. This graphic display supports Red, Green, Blue (RGB) color output, driven via a 16-bit parallel RGB interface. The module incorporates a resistive touchscreen for user interaction. Illumination is provided by a white LED backlight. The display's viewing area measures 38.72mm W x 54.13mm H. This component is commonly utilized in industrial control, medical devices, and consumer electronics applications requiring detailed graphical output.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel, 16-Bit (RGB) |
| Viewing Area | 38.72mm W x 54.13mm H |
| Dot Pixels | 240 x 320 |
| Diagonal Screen Size | 2.4"" (60.96mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | Resistive |
