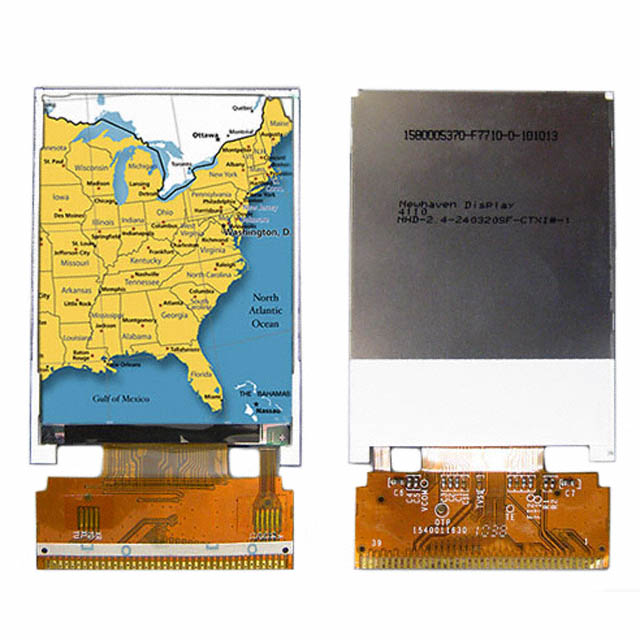

NHD-2.4-240320SF-CTXI#-1
GRAPHIC DISPLAY TFT RGB 2.4Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More
The Newhaven Display Intl NHD-2-4-240320SF-CTXI-1 is a 2.4-inch (60.96mm) diagonal TFT color graphic display module featuring a 240 x 320 pixel resolution. This transmissive display supports Red, Green, Blue (RGB) graphics and utilizes a parallel interface with 16-bit RGB data transmission. The module is equipped with a white LED backlight for illumination. Applications for this display technology can be found in industrial control systems, medical devices, and consumer electronics where detailed graphical interfaces are required. The viewing area measures 37.72mm wide by 49.96mm high.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel, 16-Bit (RGB) |
| Viewing Area | 37.72mm W x 49.96mm H |
| Dot Pixels | 240 x 320 |
| Diagonal Screen Size | 2.4"" (60.96mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | - |
