NHD-2.4-240320SF-CTXI#
GRAPHIC DISPLAY TFT RGB 2.4Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

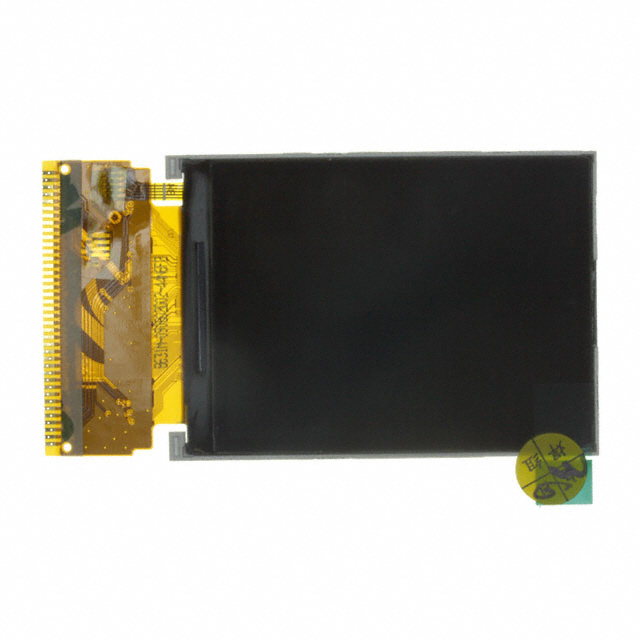

Newhaven Display Intl NHD-2-4-240320SF-CTXI- is a 2.4-inch transmissive TFT color graphic display module featuring a 240 x 320 dot pixel resolution. This module utilizes a 16-bit RGB parallel interface for data transfer, enabling vibrant Red, Green, and Blue color reproduction. The display is equipped with a white LED backlight for enhanced visibility. Its viewing area measures 36.72mm wide by 48.96mm high. This component is suitable for applications in industrial automation, medical devices, and consumer electronics requiring detailed graphical output.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel, 16-Bit (RGB) |
| Viewing Area | 36.72mm W x 48.96mm H |
| Dot Pixels | 240 x 320 |
| Diagonal Screen Size | 2.4"" (60.96mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | - |
