NHD-2.23-12832UMY3
GRAPHIC DISPLAY OLED YELLOW 2.23Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

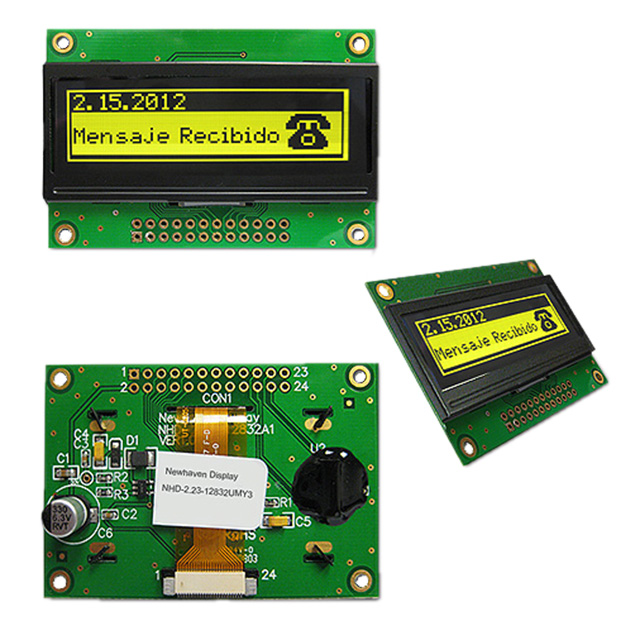

Newhaven Display Intl NHD-2-23-12832UMY3 is a 2.23-inch passive matrix OLED graphic display module featuring a 128x32 dot resolution. This display offers a vibrant yellow graphics color against a black background and operates without a backlight. The NHD-2-23-12832UMY3 is equipped with multiple interface options, including I2C, Parallel 8-Bit, and SPI, providing flexibility for integration into various system architectures. Its compact viewing area of 60.00mm W x 18.00mm H makes it suitable for applications in industrial control, test and measurement equipment, and portable electronic devices where clear, high-contrast graphical information is required. The display utilizes the SSD1305 controller.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | OLED - Passive Matrix |
| Display Mode | - |
| Backlight | Without Backlight |
| Interface | I2C, Parallel 8-Bit, SPI |
| Viewing Area | 60.00mm W x 18.00mm H |
| Dot Pixels | 128 x 32 |
| Controller Type | SSD1305 |
| Diagonal Screen Size | 2.23"" (56.64mm) |
| Background Color | Black |
| Graphics Color | Yellow |
| Touchscreen | - |
