NHD-2.23-12832UMB3
GRAPHIC DISPLAY OLED BLUE 2.23Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

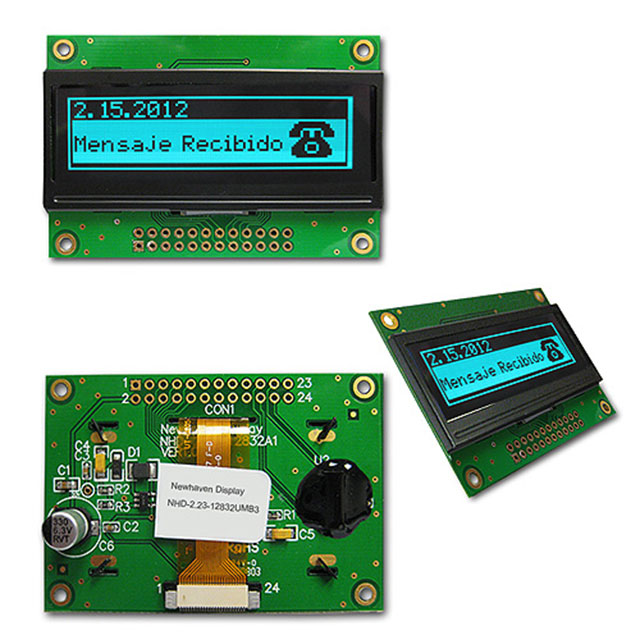

Newhaven Display Intl NHD-2-23-12832UMB3 is a 2.23-inch monochrome OLED graphic display module featuring a 128x32 resolution. This passive matrix display utilizes blue OLED technology, offering excellent contrast and a wide viewing angle without the need for a backlight. The module supports multiple communication interfaces, including I2C, 8-bit parallel, and SPI, providing designers with flexibility in system integration. Its compact size and efficient operation make it suitable for applications in industrial control, portable instrumentation, and medical devices where clear visual feedback is critical. The NHD-2-23-12832UMB3 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | OLED - Passive Matrix |
| Display Mode | - |
| Backlight | Without Backlight |
| Interface | I2C, Parallel 8-Bit, SPI |
| Viewing Area | 60.00mm W x 18.00mm H |
| Dot Pixels | 128 x 32 |
| Controller Type | SSD1305 |
| Diagonal Screen Size | 2.23"" (56.64mm) |
| Background Color | Black |
| Graphics Color | Blue |
| Touchscreen | - |
