NHD-12864WX-T1TFH#
GRAPHIC DISPLAY FSTN BLACK -Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

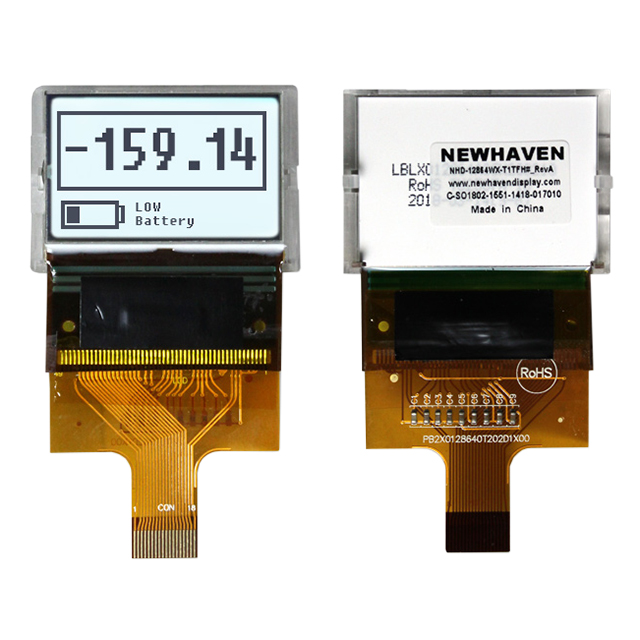

Newhaven Display Intl NHD-12864WX-T1TFH- is a graphic LCD display module featuring a 128 x 64 dot pixel resolution. This module utilizes FSTN (Film Super-Twisted Nematic) technology, offering a transflective display mode for optimal performance in varying light conditions. The graphics are rendered in black on a white background, with a white LED backlight for enhanced visibility. The display supports both parallel and serial interfaces, providing flexibility in system integration. Its compact viewing area measures 29.58mm wide by 17.98mm high. This component is suitable for applications in industrial control systems, medical equipment, and point-of-sale devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - White |
| Interface | Parallel/Serial |
| Viewing Area | 29.58mm W x 17.98mm H |
| Dot Pixels | 128 x 64 |
| Diagonal Screen Size | - |
| Background Color | White |
| Graphics Color | Black |
| Touchscreen | - |
