NHD-12864AZ-NSW-BBW
GRAPHIC DISPLAY STN - -Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

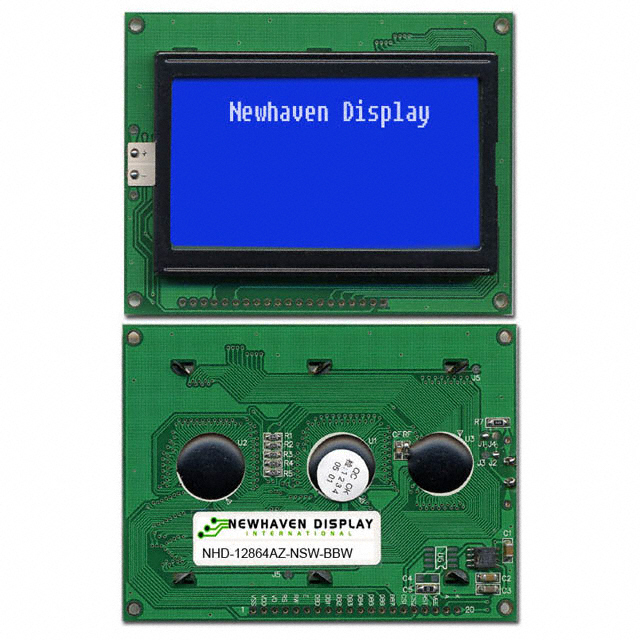

Newhaven Display Intl NHD-12864AZ-NSW-BBW is a graphic LCD display module featuring a 128 x 64 dot pixel resolution. This transmissive Super-Twisted Nematic (STN) display utilizes an 8-bit parallel interface for data communication. The module is equipped with a white LED backlight for illumination. Its viewing area measures 72.00mm wide by 40.00mm high. This component is commonly found in industrial control systems, medical equipment, and point-of-sale devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel, 8-Bit |
| Viewing Area | 72.00mm W x 40.00mm H |
| Dot Pixels | 128 x 64 |
| Diagonal Screen Size | - |
| Background Color | - |
| Graphics Color | - |
| Touchscreen | - |
