NHD-12232DZ-FSY-GBW
GRAPHIC DISPLAY STN - -Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

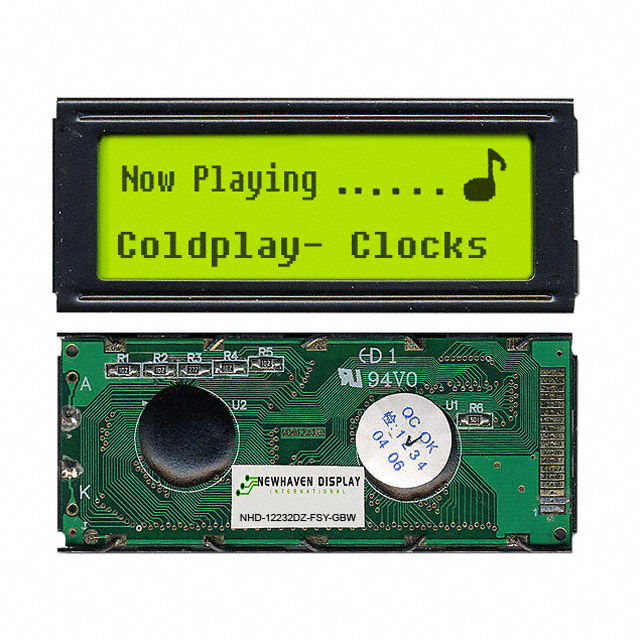

Newhaven Display Intl NHD-12232DZ-FSY-GBW is a transflective STN graphic LCD module featuring a 122 x 32 dot pixel resolution. This display utilizes Super-Twisted Nematic technology, offering a parallel 8-bit interface for data communication. The module is equipped with a yellow/green LED backlight for visibility in various lighting conditions. Its viewing area measures 59.20mm wide by 18.30mm high, suitable for applications requiring clear graphical representation. This component is commonly deployed in industrial control systems, medical equipment, and consumer electronics where robust graphical interfaces are essential. The display is packaged in a box.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | Parallel, 8-Bit |
| Viewing Area | 59.20mm W x 18.30mm H |
| Dot Pixels | 122 x 32 |
| Diagonal Screen Size | - |
| Background Color | - |
| Graphics Color | - |
| Touchscreen | - |
