NHD-10.1-1024600AF-ASXV#-CTP
GRAPHIC DISPLAY TFT RGB 10.1Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

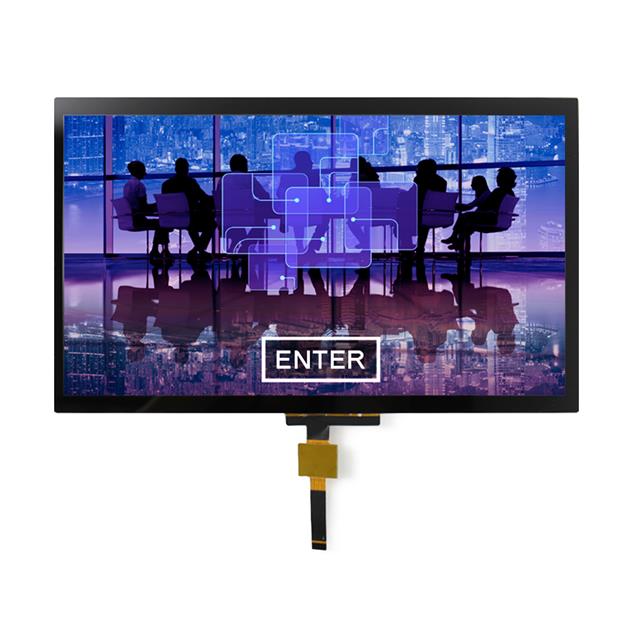

Newhaven Display Intl NHD-10-1-1024600AF-ASXV-CTP is a 10.1-inch transmissive TFT-RGB color graphic display module featuring a 1024 x 600 resolution. This module utilizes a capacitive touchscreen interface and is driven by the HX8282 controller. It supports 24-bit RGB parallel interface for vibrant color reproduction. The display is equipped with a white LED backlight for illumination and is supplied in tray packaging. Applications for this component include industrial control systems, medical devices, and automotive displays. The viewing area measures 224.44mm wide by 127.00mm high.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel, 24-Bit (RGB) |
| Viewing Area | 224.44mm W x 127.00mm H |
| Dot Pixels | 1024 x 600 |
| Controller Type | HX8282 |
| Diagonal Screen Size | 10.1"" (256.54mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | Capacitive |
