NHD-10.1-1024600AF-ASXV#
GRAPHIC DISPLAY TFT RGB 10.1Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

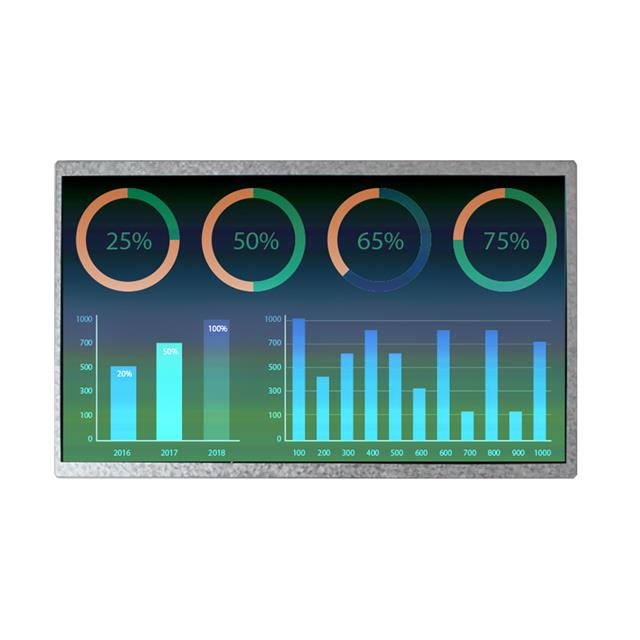

Newhaven Display Intl NHD-10-1-1024600AF-ASXV- is a transmissive, color TFT graphic display module featuring a 10.1-inch diagonal screen size with a 1024 x 600 dot pixel resolution. This display supports 24-bit RGB parallel interface for Red, Green, and Blue graphics. The module is equipped with a white LED backlight and utilizes the HX8282 controller. Its viewing area measures 226.42mm wide by 128.98mm high. This component is commonly employed in industrial automation, medical equipment, and consumer electronics requiring high-resolution color graphical output. The product is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel, 24-Bit (RGB) |
| Viewing Area | 226.42mm W x 128.98mm H |
| Dot Pixels | 1024 x 600 |
| Controller Type | HX8282 |
| Diagonal Screen Size | 10.1"" (256.54mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | - |
Request a Quote
