NHD-1.1-9696G
GRAPHIC DISPLAY OLED RGB 1.1Manufacturer: Newhaven Display Intl
Categories: LCD, OLED, Graphic
Quality Control: Learn More

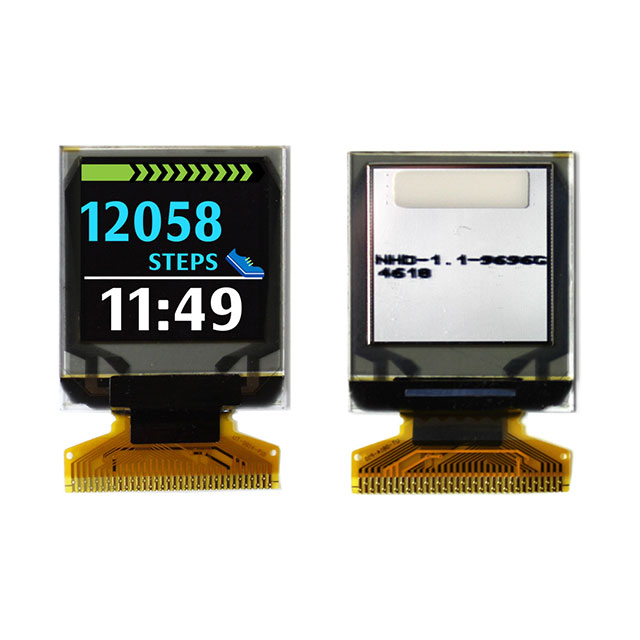

Newhaven Display Intl's NHD-1-1-9696G is a 1.1-inch transflective OLED graphic display module featuring a 96 x 96 pixel resolution. This display offers Red, Green, and Blue (RGB) graphics capabilities, driven by the SEPS114A controller. The module supports both Parallel and Serial interfaces for flexible integration. Its 27.94mm diagonal viewing area, with dimensions of 21.85mm W x 21.85mm H, makes it suitable for compact applications. This component is commonly found in industrial automation, medical devices, and portable electronics where clear, vibrant graphics are essential. The module is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Display Type | OLED |
| Display Mode | Transflective |
| Backlight | - |
| Interface | Parallel, Serial |
| Viewing Area | 21.85mm W x 21.85mm H |
| Dot Pixels | 96 x 96 |
| Controller Type | SEPS114A |
| Diagonal Screen Size | 1.1"" (27.94mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | - |
