NHD-C0220AZ-FSW-FTW
LCD MOD 40DIG 20X2 TRANSFLCT WHTManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

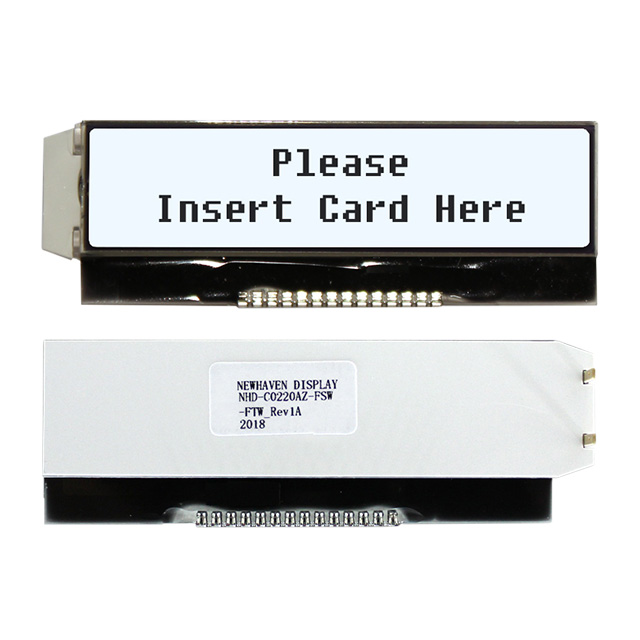

Newhaven Display Intl NHD-C0220AZ-FSW-FTW is a 20x2 character LCD module featuring a transflective FSTN display with white LED backlight. This module offers 40 characters total, with a 5x8 dot character format. The display supports a parallel interface and is driven by the NT-7605 controller. Key specifications include a dot size of 0.45mm W x 0.65mm H and character dimensions of 5.55mm H x 2.45mm W. The operating temperature range is -20°C to 70°C, with a supply voltage of 4.5V to 5.5V. The module's outline dimensions are 70.30mm x 25.00mm x 6.10mm, and its viewing area measures 61.00mm L x 15.10mm W. This component is commonly used in industrial control, instrumentation, and point-of-sale systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - White |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 61.00mm L x 15.10mm W |
| Character Size | 5.55mm H x 2.45mm W |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.45mm W x 0.65mm H |
| Controller Type | NT-7605 |
| Outline L x W x H | 70.30mm x 25.00mm x 6.10mm |
| Text Color | Black |
| Background Color | White |
| Number of Characters | 40.0 |
