NHD-0420Z-RN-GBW
LCD MOD 80 DIG 20 X 4 REFLECTIVEManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

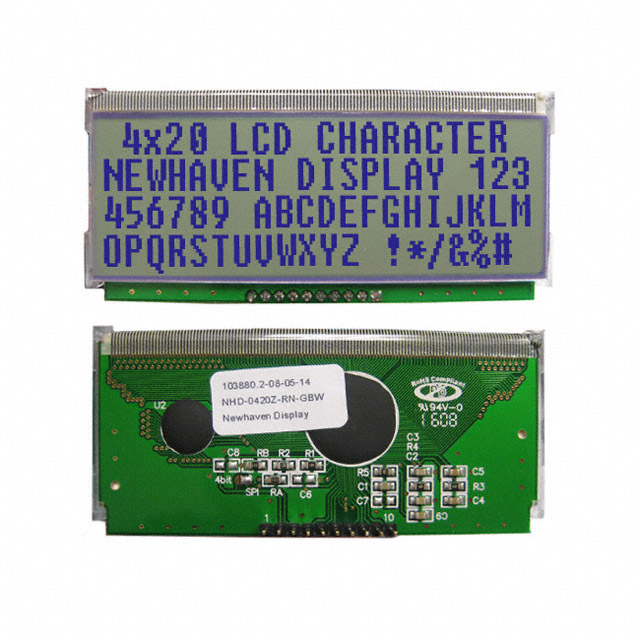

Newhaven Display Intl NHD-0420Z-RN-GBW is a 20 x 4 character LCD module featuring a reflective STN display with a gray background and blue text. This module offers a character format of 5 x 8 dots, with individual character dimensions of 4.75mm H x 2.95mm W and dot size of 0.55mm W x 0.55mm H. The NHD-0420Z-RN-GBW operates without a backlight, utilizing ambient light for readability. Its parallel interface facilitates integration into various systems. The module's overall dimensions are 86.00mm x 39.60mm x 6.60mm, with a viewing area of 79.00mm L x 27.00mm W. It is designed for operation within an ambient temperature range of -20°C to 70°C and requires a supply voltage between 4.7V and 5.5V. This display is suitable for applications in industrial control, instrumentation, and portable electronics where low power consumption and sunlight readability are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Reflective |
| Backlight | Without Backlight |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.7V ~ 5.5V |
| Viewing Area | 79.00mm L x 27.00mm W |
| Character Size | 4.75mm H x 2.95mm W |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.55mm W x 0.55mm H |
| Outline L x W x H | 86.00mm x 39.60mm x 6.60mm |
| Text Color | Blue |
| Background Color | Gray |
| Number of Characters | 80.0 |
