NHD-0420H1Z-FL-GBW-3V
LCD MOD 80DIG 20X4 TRANS YLW/GRNManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

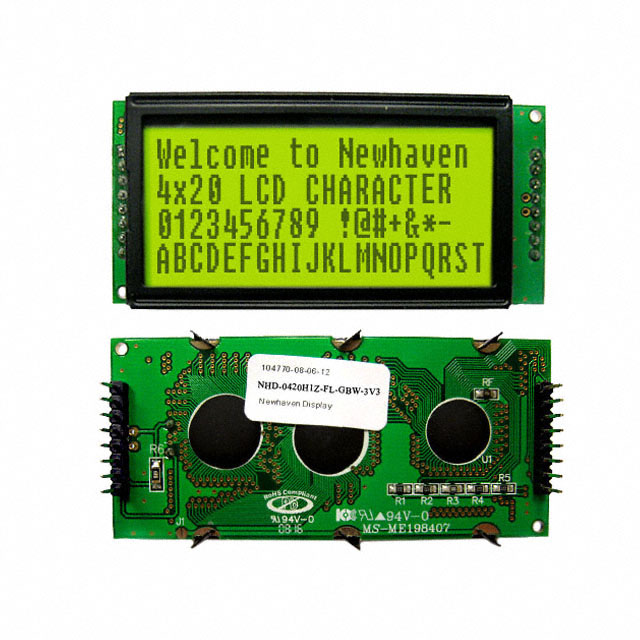

Newhaven Display Intl NHD-0420H1Z-FL-GBW-3V is a transflective STN character display module. This 20x4 format module offers 80 characters with a 5x8 dot matrix character format, each measuring 5.15mm x 2.35mm. The display features a yellow/green LED backlight and a gray text color on a green background, with a dot size of 0.43mm x 0.60mm. The interface is parallel, and the module operates at a supply voltage of 3V to 3.5V. With an operating temperature range of -20°C to 70°C, this display is suitable for applications in industrial automation, test and measurement equipment, and consumer electronics. The overall dimensions are 79.00mm x 36.00mm x 13.00mm, with a viewing area of 60.00mm x 28.00mm.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 3V ~ 3.5V |
| Viewing Area | 60.00mm L x 28.00mm W |
| Character Size | 5.15mm H x 2.35mm W |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.43mm W x 0.60mm H |
| Outline L x W x H | 79.00mm x 36.00mm x 13.00mm |
| Text Color | Gray |
| Background Color | Green |
| Number of Characters | 80.0 |
