NHD-0420DZ-FL-YBW-3V3
LCD MOD 80DIG 20X4 TRANS YLW/GRNManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

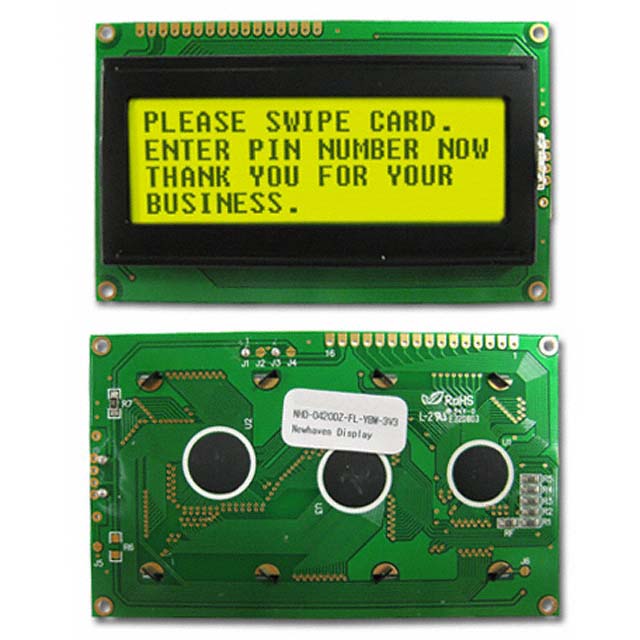

Newhaven Display Intl NHD-0420DZ-FL-YBW-3V3 is a 20x4 character LCD module with a transflective STN display. This module provides 80 characters total, each with a 5x8 dot format. The display features a yellow/green LED backlight for enhanced readability in various lighting conditions. The parallel interface facilitates straightforward integration into embedded systems. Operating within a voltage range of 3V to 3.5V, this display module is suitable for applications in industrial control, medical equipment, and consumer electronics where a robust character display is required. The module dimensions are 98.00mm x 60.00mm x 14.00mm, with a viewing area of 76.00mm x 25.20mm.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 3V ~ 3.5V |
| Viewing Area | 76.00mm L x 25.20mm W |
| Character Size | 4.75mm H x 2.95mm W |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.55mm W x 0.55mm H |
| Outline L x W x H | 98.00mm x 60.00mm x 14.00mm |
| Text Color | Gray |
| Background Color | Green |
| Number of Characters | 80.0 |
